SL 18 132 34 G

Headers, Male Pins Overview

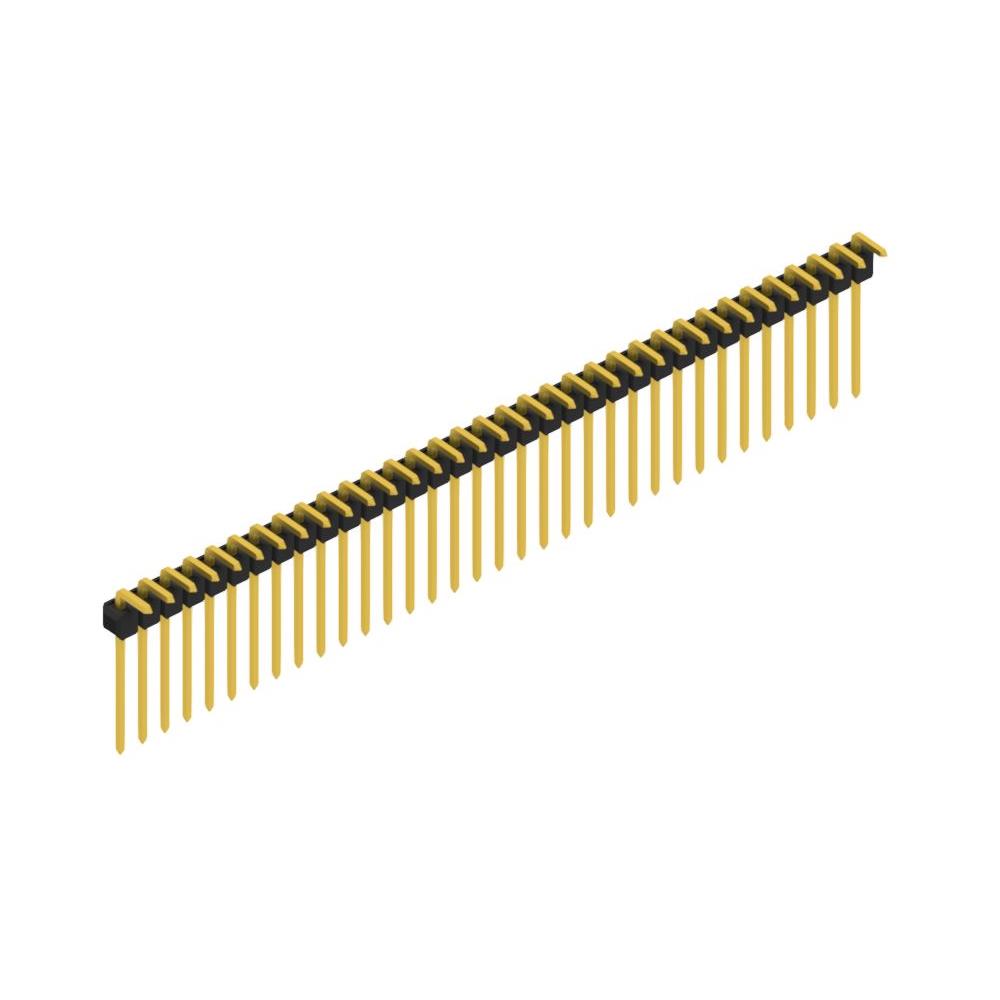

The SL 18 132 34 G is a male pin header connector manufactured by Fischer Elektronik, designed for through-hole mounting on printed circuit boards. This component features 34 positions arranged in a single row with a standard 0.100 inch (2.54 mm) contact spacing. The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. It belongs to the SL 18 series, which allows for variable insertion side dimensions to accommodate specific mechanical requirements.

Headers, Male Pins Feature Summary

• Gold-plated contacts for enhanced conductivity
• Through-hole termination method
• Single row configuration

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly

Headers, Male Pins Procurement Notes

Verify the exact pin count and row configuration against the datasheet before ordering. Confirm that the gold plating specification meets the application's environmental requirements. Ensure the through-hole footprint matches the PCB design guidelines provided by Fischer Elektronik.

Headers, Male Pins Selection Notes

Select this part when a single-row, 34-position header is required. Consider the SL 18 series if variable insertion dimensions are needed. Verify that the 0.100 inch pitch aligns with the mating connector specifications.

Headers, Male Pins Part Context

This component is part of Fischer Elektronik's extensive range of PCB connectors. The SL 18 series is characterized by its precision engineering and customizable insertion side dimensions. It serves as a standard interface solution for various electronic devices requiring robust board-level connectivity.

Headers, Male Pins Replacement Considerations

Check for direct substitutes within the SL 18 series with different pin counts. Verify compatibility with mating sockets from other manufacturers based on the 0.100 inch pitch and gold contact finish.
