SL 2 053 2 S

Headers, Male Pins Overview

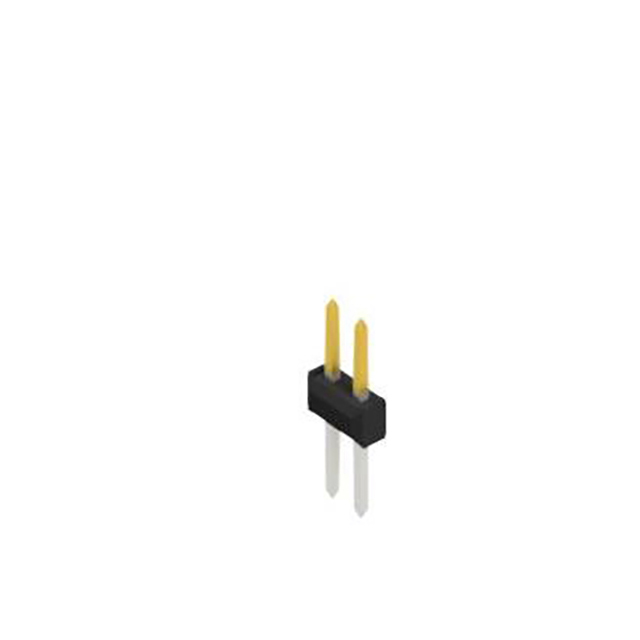

The SL 2 053 2 S is a male pin header connector from the Fischer Elektronik SL 2 series. It features a 2-position, 2-row configuration with a 2.54 mm pitch and row spacing. Designed for through-hole mounting, it utilizes solder termination. The contacts are gold-plated (Ni+≥0.2µm Au) over nickel, while the tails are tin-plated (Ni+46µm Sn). The unit operates within a temperature range of -40°C to +163°C and withstands reflow soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Compact board-to-board or wire-to-board interconnection design
• Gold-plated contact surfaces for reliable signal transmission
• High-temperature resistance suitable for standard reflow processes

Headers, Male Pins Applications

• Electronic circuit board interconnections
• Wire-to-board assembly applications
• Compact electronic device integration

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the official datasheet to ensure correct plating thickness and material specifications. Confirm that the 2-position count matches the required circuit layout. Ensure compatibility with standard 2.54 mm pitch mating connectors. Check thermal profile requirements against the specified 260°C/10s limit during procurement planning.

Headers, Male Pins Selection Notes

Select this component when a minimal 2-position header is required in a compact form factor. The 2.54 mm pitch ensures compatibility with standard PCB footprints. Consider the through-hole mounting style for mechanical stability. Verify that the operating temperature range meets the environmental demands of the target application.

Headers, Male Pins Part Context

This part belongs to the SL 2 series of pin headers from Fischer Elektronik. The series offers various pole counts and configurations for general-purpose electronic connections. The SL 2 053 variant specifically denotes the physical dimensions and contact arrangement within the product line.

Headers, Male Pins Replacement Considerations

Consult the official Fischer Elektronik catalog for alternative positions within the same SL 2 series. Verify dimensional compatibility before substituting with generic 2.54 mm headers. Ensure mating connector specifications align with the gold-plated contact requirements.
