SL 22 124 54 Z

Headers, Male Pins Overview

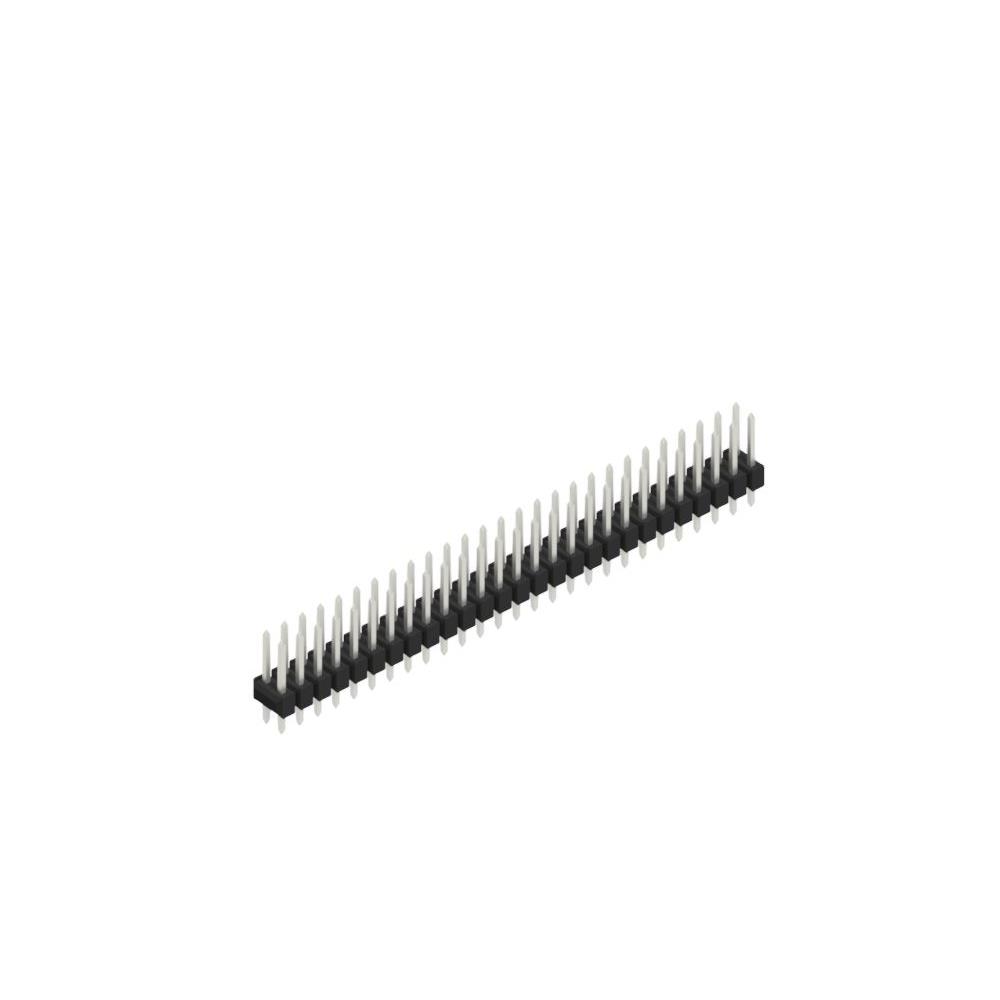

The SL 22 124 54 Z is a male board connector manufactured by Fischer Elektronik. It features a two-row configuration with 54 contacts and a 0.100-inch (2.54 mm) pitch. The connector utilizes a straight through-hole soldering technique for PCB mounting. Contact surfaces are finished with tin, while the termination side also employs a tin finish. The housing material is polyamide (PA46), providing structural integrity. The component is RoHS compliant and currently in active production status.

Headers, Male Pins Feature Summary

• Two-row male header design for high-density interconnection
• Through-hole solder terminal for secure PCB attachment
• Tin-plated contact surfaces for reliable conductivity
• Polyamide insulation material for thermal stability

Headers, Male Pins Applications

• General purpose electronic assemblies
• Industrial control boards
• Consumer electronics manufacturing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the required contact count of 54 matches the design layout. Confirm RoHS compliance requirements align with project standards before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a two-row male header with a 2.54 mm pitch is required. The straight orientation suits standard vertical mounting applications. Verify that the tin-plated contacts meet the environmental and electrical performance needs of the target circuit interface.

Headers, Male Pins Part Context

This part belongs to the SL series of board connectors from Fischer Elektronik. The series includes various configurations with different row counts and contact numbers. The SL 22 designation typically indicates a two-row male header format within the manufacturer's product line.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult Fischer Elektronik directly for cross-reference information or equivalent components with matching mechanical and electrical specifications.
