SL 22 164 24 G

Headers, Male Pins Overview

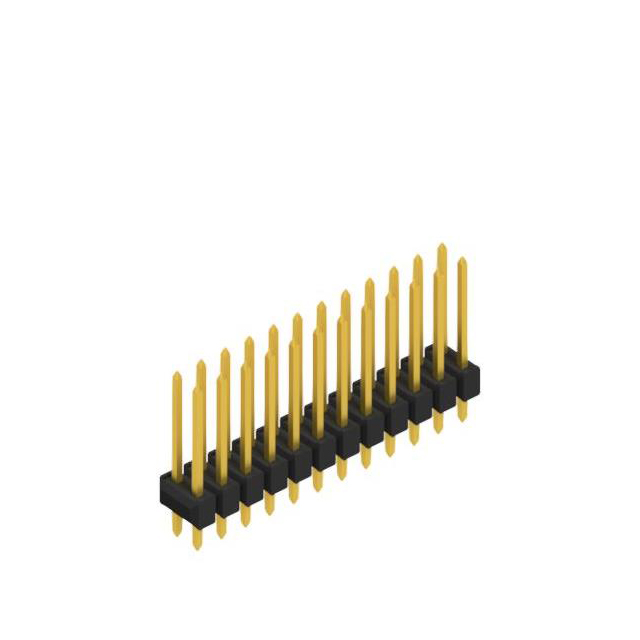

The SL 22 164 24 G is a male pin header connector manufactured by Fischer Elektronik. It features 24 contacts arranged in two rows with a 0.100 inch (2.54 mm) pitch. The component utilizes through-hole termination and gold-plated contacts for reliable signal transmission. Key dimensions include an overall pin length of 1.142 inches, a mating column length of 0.433 inches, and a solder tail length of 0.130 inches. The housing is black, and the contact surface thickness is specified at 7.87 µin.

Headers, Male Pins Feature Summary

• Two-row male pin header configuration for board-to-board or wire-to-board interconnection
• Gold-plated contact surfaces ensuring durable electrical performance
• Through-hole mounting style for secure PCB attachment

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Board stacking applications requiring precise alignment
• Prototyping and development boards

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and row configuration. Ensure compatibility with mating connectors regarding pitch and height specifications. Check for RoHS compliance status if required by project standards. Confirm that the through-hole footprint matches the target PCB design before procurement.

Headers, Male Pins Selection Notes

Select this component when a 24-position, two-row male header is required. The 2.54 mm pitch is standard for many legacy and general-purpose systems. Consider the overall height and stack-up requirements to ensure sufficient clearance above the PCB. Verify that the gold plating meets the environmental conditions of the intended application.

Headers, Male Pins Part Context

This part belongs to the SL 22 series of Fischer Elektronik connectors. The series offers various contact counts and configurations. The SL 22 164 24 G specifically provides a 24-contact solution. It is designed for high-reliability applications where consistent electrical connection is critical. The series supports both straight and right-angle orientations depending on the specific suffix.

Headers, Male Pins Replacement Considerations

Compatible substitutes may include other Fischer Elektronik headers within the SL 22 series with identical 24-pin, two-row, 2.54 mm pitch specifications. Ensure any replacement maintains the same through-hole termination and gold contact finish. Verify mechanical dimensions match the existing PCB footprint and assembly constraints.
