SL 22 190 20 G

Headers, Male Pins Overview

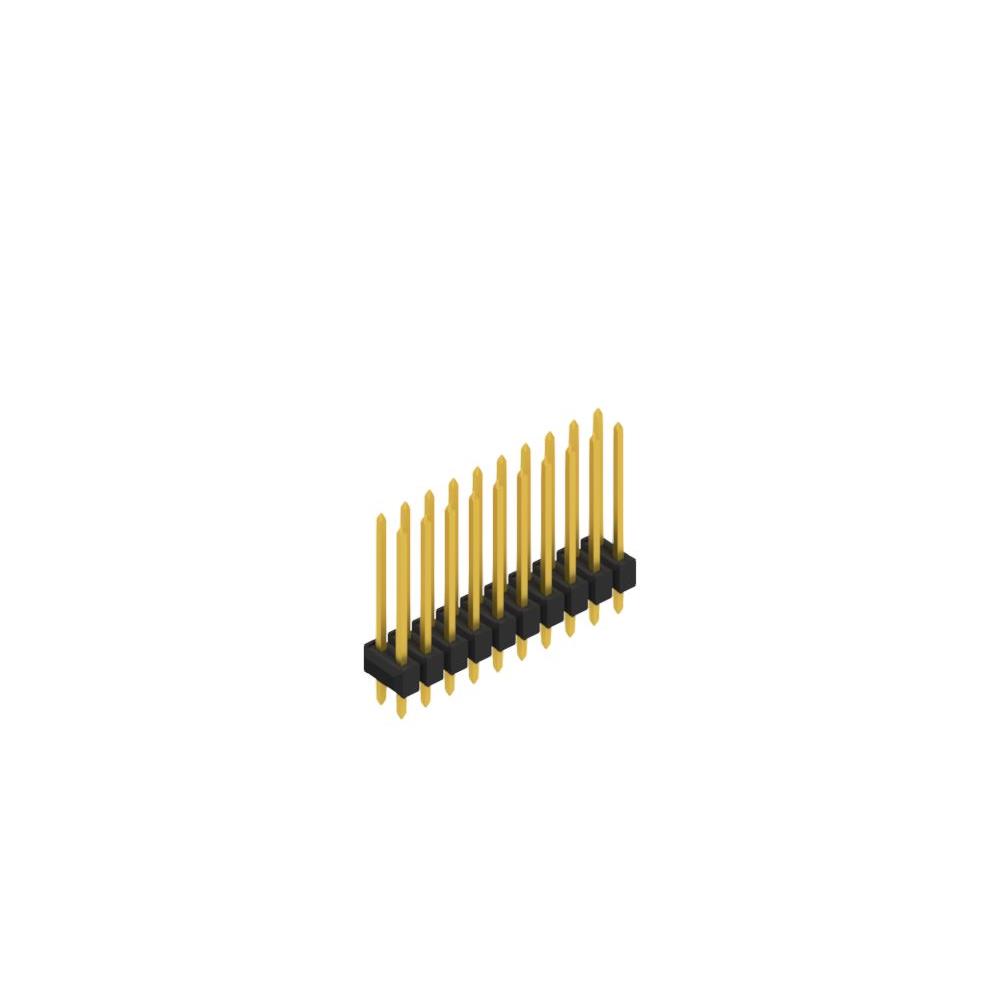

The SL 22 190 20 G is a male pin header connector manufactured by Fischer Elektronik. It features a through-hole mounting style with a straight orientation. The connector comprises two rows and contains twenty contacts. The contact pitch is standardized at 0.100 inches, equivalent to 2.54 millimeters. This configuration supports board-to-board or wire-to-board interconnections. The component is designed for reliable electrical connectivity in electronic assemblies requiring precise alignment and durable mechanical attachment.

Headers, Male Pins Feature Summary

• Two-row male pin header design for structured signal routing
• Through-hole mounting method ensuring secure PCB attachment
• Standardized 2.54 mm pitch for compatibility with common assembly practices

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connection assemblies
• General electronic circuit integration

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's official documentation to confirm plating specifications and material composition. Ensure the required contact count matches the twenty-position configuration. Confirm that the through-hole straight form factor aligns with the target printed circuit board layout requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a two-row male header with a 2.54 mm pitch is required for through-hole applications. Consider the physical dimensions and row spacing to ensure adequate clearance on the target assembly. Evaluate the mechanical stability provided by the through-hole mounting style relative to the operational environment of the electronic device.

Headers, Male Pins Part Context

This part belongs to the SL 22 190 series of connectors from Fischer Elektronik. The series includes various configurations differing in contact count, pitch, and surface finish options. These headers are engineered for precision engineering requirements in modern electronics, offering consistent performance across different product variants within the same family line.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, two-row structure, and twenty-contact count. Verify that alternative components support through-hole straight mounting. Cross-reference plating specifications if environmental resistance is critical for the application.
