SL 22 240 38 Z

Headers, Male Pins Overview

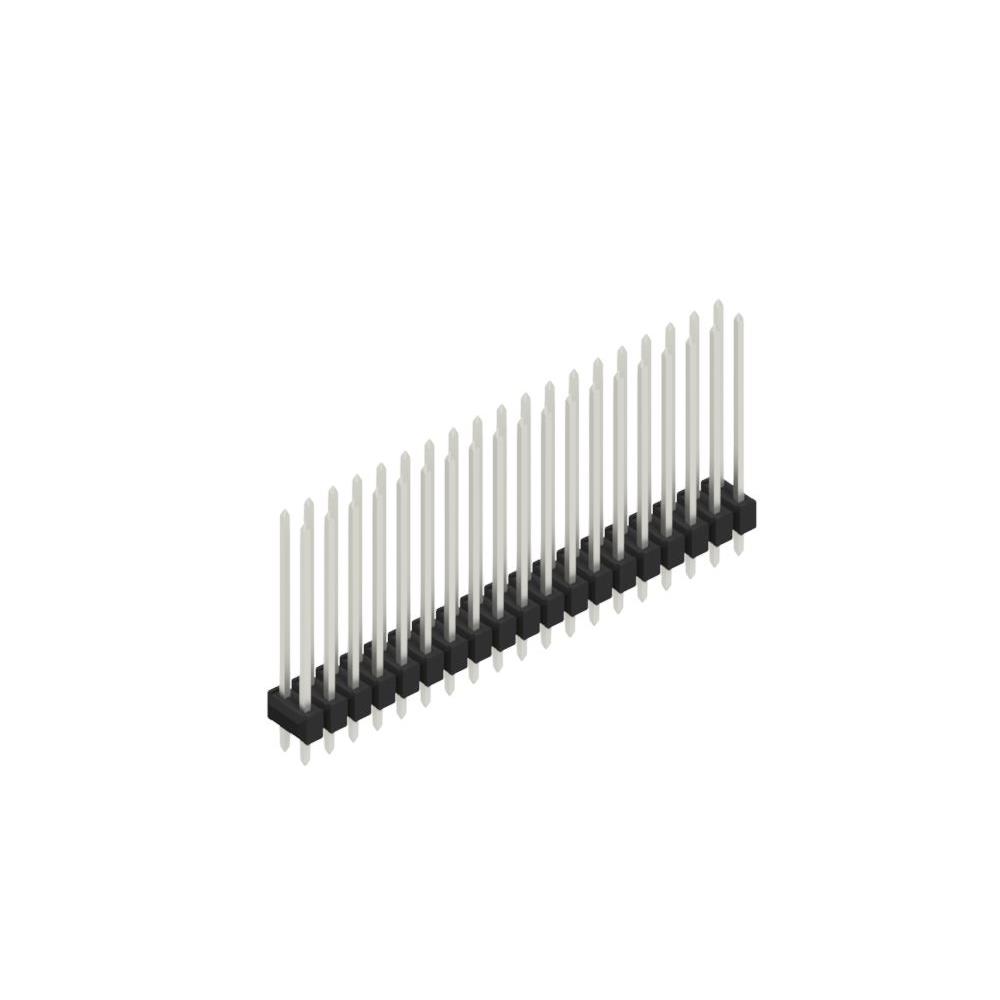

The SL 22 240 38 Z is a male pin header connector manufactured by Fischer Elektronik. It features a through-hole mounting style with two rows and a total of 38 contacts. The connector utilizes a standard 0.100-inch (2.54 mm) pin spacing to ensure compatibility with common PCB layouts. The design supports board-to-board or wire-to-board connections, providing a reliable mechanical and electrical interface for electronic assemblies requiring high-density interconnect solutions.

Headers, Male Pins Feature Summary

• Two-row configuration for increased contact density within a compact footprint
• Through-hole mounting method ensures secure attachment to printed circuit boards
• Standardized 2.54 mm pitch facilitates broad compatibility with industry-standard connectors

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly applications
• General-purpose electronic circuit integration

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm exact plating specifications and material composition. Ensure the required contact count matches the 38-position configuration before finalizing procurement orders to prevent mismatched inventory acquisition.

Headers, Male Pins Selection Notes

Select this component when a straight, through-hole male header with dual-row geometry is required. The 2.54 mm pitch makes it suitable for standard PCB designs. Confirm that the physical dimensions align with the available board space and that the mounting style meets the assembly process requirements.

Headers, Male Pins Part Context

This part belongs to the SL 22 series of Fischer Elektronik headers. The series typically offers various contact counts and row configurations. The specific model indicates a 38-contact variant designed for robust connectivity in standard electronic manufacturing environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2-row, 38-pin, 2.54 mm pitch through-hole specification. Verify mechanical dimensions and terminal plating compatibility before cross-referencing alternative manufacturers.
