SL 3 025 6 S

Headers, Male Pins Overview

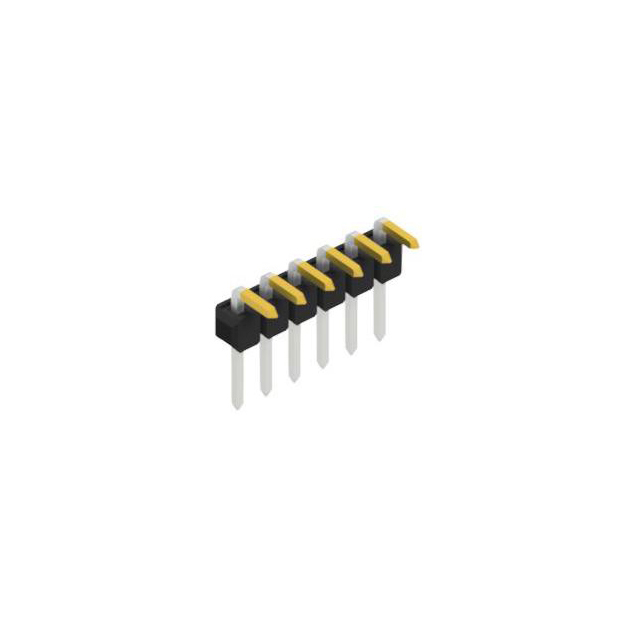

The SL 3 025 6 S is a male pin header connector from the Fischer Elektronik SL 3 series, designed for through-hole PCB mounting. It features a single row with six contacts and a standard 2.54 mm (0.100 inch) pitch. The connector utilizes copper alloy pins with selective gold plating to ensure reliable electrical performance. Key dimensions include an insertion depth of 3.00 mm into the PCB. This component is engineered for board-to-board or wire-to-board interconnections in electronic assemblies requiring robust mechanical stability.

Headers, Male Pins Feature Summary

• Single-row male header configuration for compact circuit layouts
• Selective gold plating on copper alloy contacts for corrosion resistance
• Through-hole termination method ensuring secure PCB attachment

Headers, Male Pins Applications

• Board-to-board interconnection modules
• Wire-to-board signal routing
• General electronic assembly prototyping

Headers, Male Pins Procurement Notes

Verify the specific contact count and row configuration against the official datasheet before procurement. Ensure compatibility with mating female sockets regarding insertion force and alignment tolerances. Confirm that the selective gold plating specification meets the environmental requirements of the target application. Cross-reference the part number suffix to confirm the exact variant details.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for 2.54 mm pitch applications. Consider the insertion depth of 3.00 mm to ensure adequate PCB penetration without excessive protrusion. Evaluate the mechanical strength provided by the through-hole mounting style against vibration requirements. Compare against other SL series variants if different row counts or heights are needed.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 3 series of PCB connectors, which specializes in male headers for various interconnection needs. The series offers customizable dimensions and contact arrangements to suit diverse electronic design constraints. Fischer Elektronik manufactures these components with a focus on precision engineering and high-quality surface treatments for long-term reliability in industrial and commercial electronics.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row configuration, and 6-pin count. Verify that alternative manufacturers provide comparable selective gold plating and insertion depth specifications. Ensure the replacement header supports the same through-hole mounting technique and physical envelope dimensions.
