SL 3 131 32 Z

Headers, Male Pins Overview

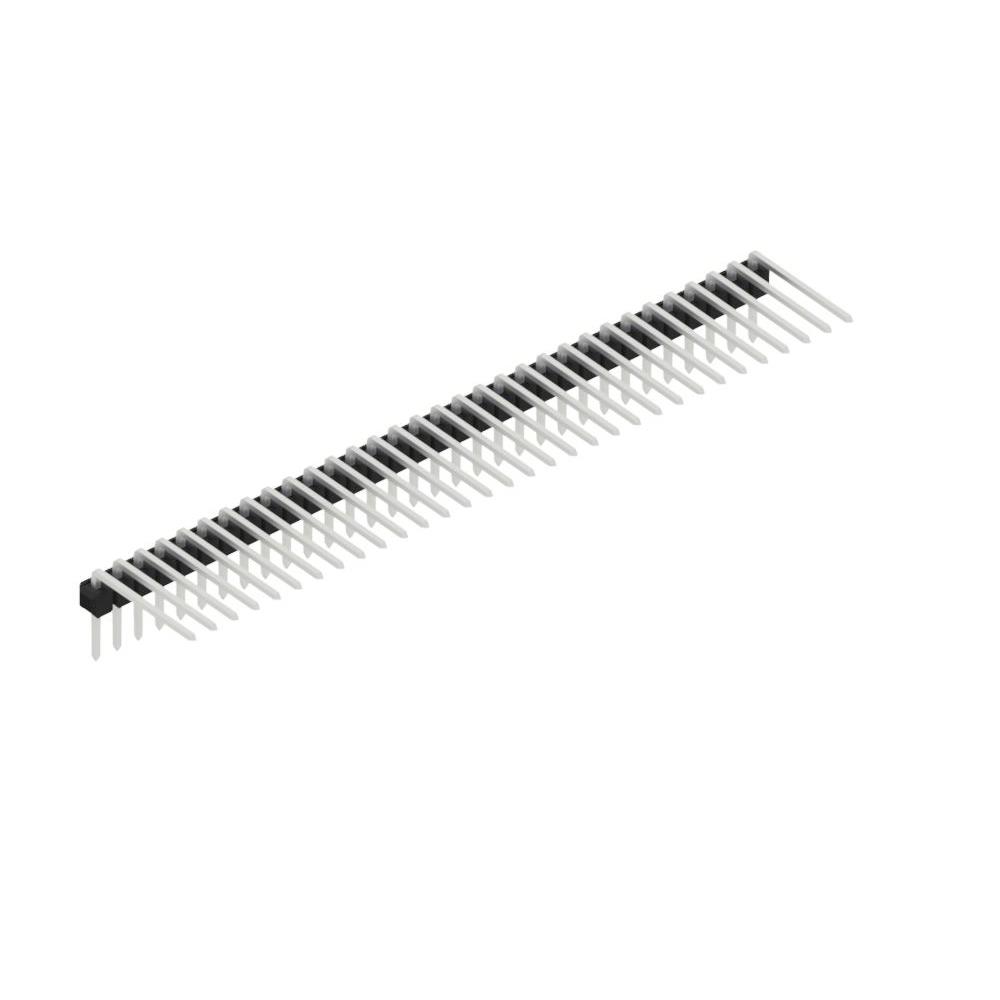

The SL 3 131 32 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 32 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The contacts are constructed from copper alloy and tin-plated to ensure reliable electrical conductivity. This component serves as a standard interconnect solution for board-to-board or wire-to-board applications requiring robust mechanical stability and consistent signal transmission.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward assembly
• Through-hole termination method for secure PCB attachment
• Tin-plated copper alloy contacts for corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connection assemblies
• General electronic equipment internal wiring

Headers, Male Pins Procurement Notes

Verify the exact part number against manufacturer documentation to confirm the specific contact plating and row configuration. Ensure that the through-hole footprint matches the target PCB design specifications. Cross-reference official datasheets for thermal and current ratings relevant to the intended operational environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, right-angle male header is required for 2.54 mm pitch applications. Consider the 32-position count and through-hole mounting style relative to available board space. Evaluate the tin-plated contact finish against environmental exposure requirements to determine suitability for long-term reliability in the specific deployment scenario.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL series of pin headers, which offers customizable dimensions and various contact counts. The series is engineered for high-density interconnect needs in industrial and consumer electronics. The SL 3 131 32 Z represents a specific configuration within this modular family, providing standardized spacing and mechanical properties for consistent integration across diverse electronic designs.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided source material.
