SL 3 152 17 Z

Headers, Male Pins Overview

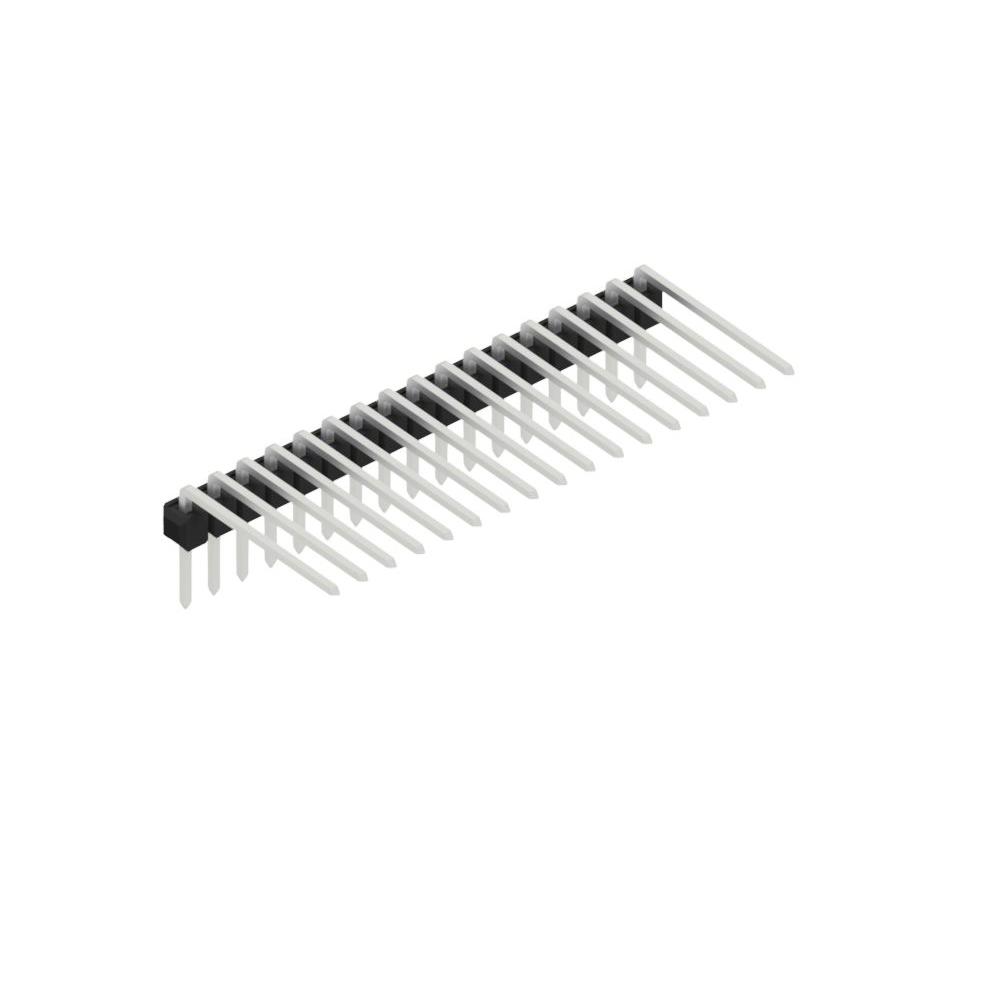

The SL 3 152 17 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 17 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes through-hole mounting and square contact pins made of CuSn alloy with tin plating. Key dimensions include a total contact length of 0.441 inches, a mating contact length of 0.213 inches, and a column contact length of 0.118 inches. The insulation height is 0.110 inches, constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Precision-engineered male header with a 0.635 mm pitch for reliable electronic connections.
• Single-row design utilizing through-hole mounting for board-to-board or wire-to-board applications.
• Contacts fabricated from CuSn alloy with tin plating to ensure conductivity and durability.

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm exact dimensional tolerances and material specifications. Ensure compatibility with mating connectors regarding pitch and contact geometry. Confirm that the tin-plated surface finish meets the required environmental resistance standards for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row, 17-position male header with a 2.54 mm pitch is required. The choice is driven by the need for through-hole mounting and the specific physical dimensions of the housing and contacts. Consider the CuSn alloy material and tin plating for standard conductivity needs. Verify that the operating temperature range aligns with the PA46 insulation properties.

Headers, Male Pins Part Context

This part belongs to the SL 3 152 series of PCB connectors from Fischer Elektronik. The series offers customizable dimensions labeled as 'A' and 'B'. Components in this family typically feature 0.635 mm pitch contacts and are designed for robust mechanical stability in electronic assemblies. The series supports various contact counts and plating options.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 17-position count, 2.54 mm pitch, and through-hole mounting style. Verify dimensional compatibility with existing PCB footprints and mating connectors before substitution.
