SL 3 182 23 S

Headers, Male Pins Overview

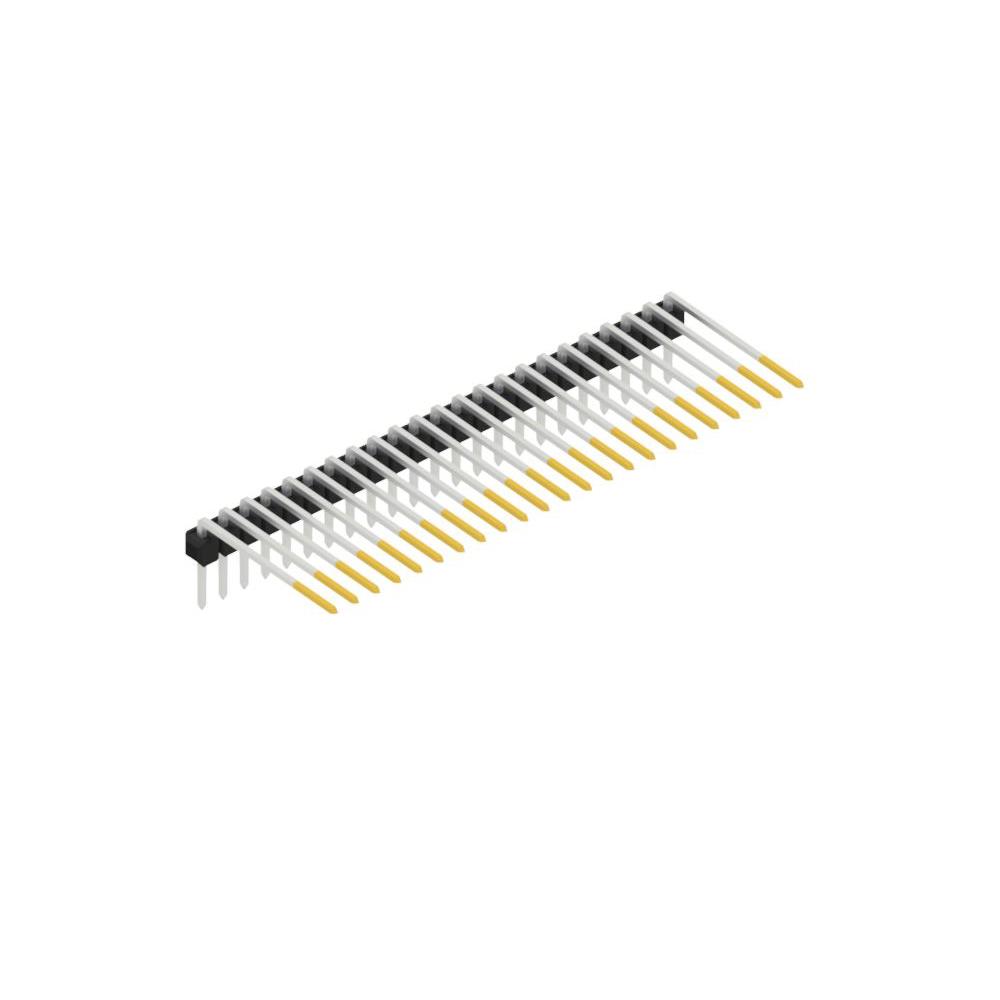

The Fischer Elektronik SL 3 182 23 S is a male pin header connector featuring a 0.635 mm (0.025 inch) pitch spacing and 23 contacts. It utilizes a single row configuration with bronze contact material, selectively gold-plated for reliable conductivity. Designed for through-hole mounting on printed circuit boards, the component offers a total contact length of 0.441 inches (11.20 mm). The connector supports standard PCB assembly processes and provides secure mechanical retention within electronic assemblies requiring precise interconnection.

Headers, Male Pins Feature Summary

• Precision-engineered male header with selectable dimension configurations
• Selective gold plating on bronze alloy contacts for enhanced durability
• Single-row design optimized for compact board space utilization

Headers, Male Pins Applications

• Industrial electronic manufacturing systems
• Precision instrumentation interconnections
• General-purpose PCB signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm exact dimensional tolerances and contact plating thickness specifications. Ensure compatibility with mating female connectors regarding pitch alignment and insertion force requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 0.635 mm pitch male header is required for high-density applications. Confirm that the 23-contact count matches the circuit design needs. Evaluate the selective gold plating benefits against cost constraints compared to tin-plated alternatives for the intended operating environment.

Headers, Male Pins Part Context

This part belongs to the SL 3 182 series, characterized by customizable dimensions labeled as 'A' and 'B'. The series is designed for demanding industrial environments, offering robust mechanical stability and consistent electrical performance across various electronic manufacturing applications.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify cross-compatibility with existing designs using only official manufacturer substitution lists.
