SL 4 025 50 S

Headers, Male Pins Overview

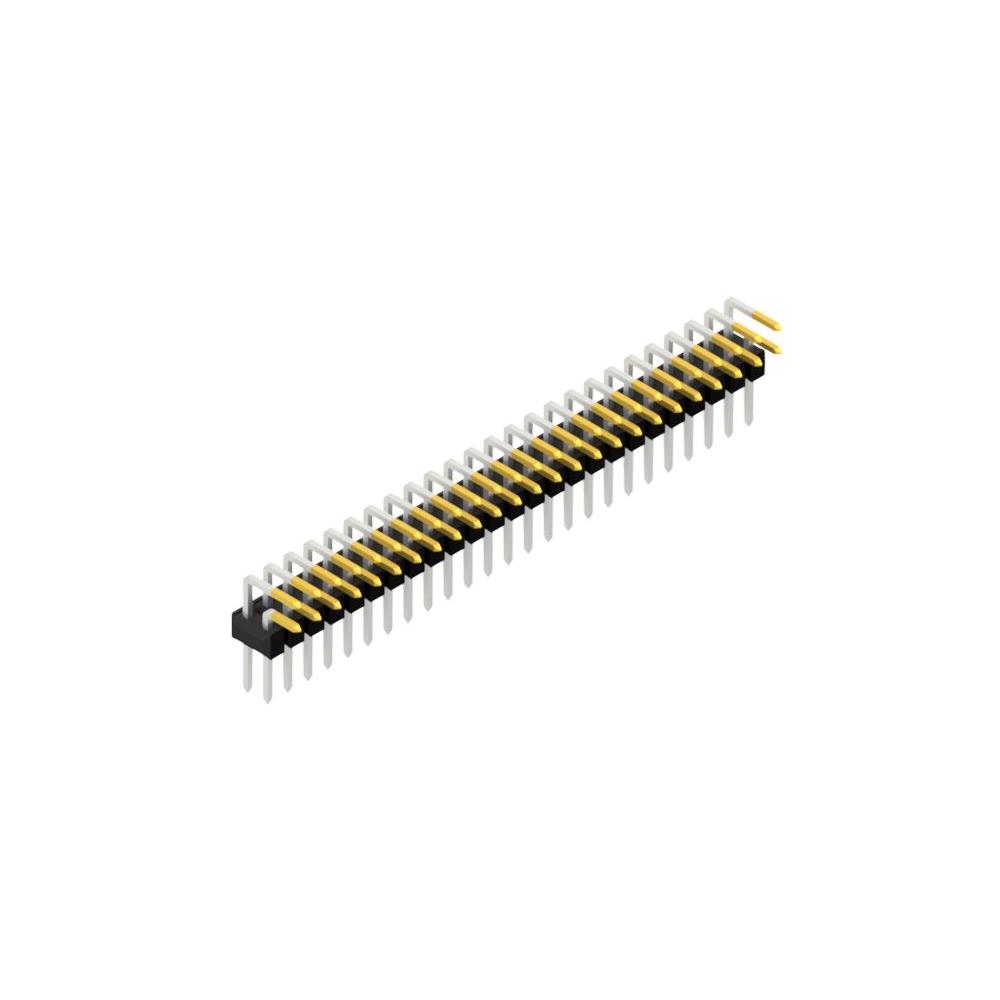

The Fischer Elektronik SL 4 025 50 S is a male pin header connector designed for board-to-board and wire-to-board applications. It features a 2.54 mm (0.100 inch) pitch with 50 contacts arranged in two rows. The component utilizes a through-hole right-angle mounting style for secure PCB integration. The housing is black, and the connector is RoHS compliant.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting configuration
• Dual-row contact arrangement
• Standard 2.54 mm spacing

Headers, Male Pins Applications

• Board-to-board interconnection
• Wire-to-board connections
• Electronic equipment cooling systems

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and row configuration. Confirm that the right-angle orientation aligns with the mechanical layout constraints of the target printed circuit board assembly to ensure proper fitment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, dual-row header is required for vertical PCB stacking or edge connections. Ensure the through-hole footprint on the design matches the specified pin dimensions to guarantee reliable solder joint integrity during manufacturing.

Headers, Male Pins Part Context

This model belongs to the SL 4 025 series of precision-engineered electronic components manufactured by Fischer Elektronik GmbH & Co. KG. The series is characterized by compact dimensions and standardized spacing, catering to diverse industrial and consumer electronics connectivity needs.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers within the SL 4 025 family, such as the SL 4 025 30 S, provided the contact count difference is acceptable for the application requirements.
