SL 5 172 13 G

Headers, Male Pins Overview

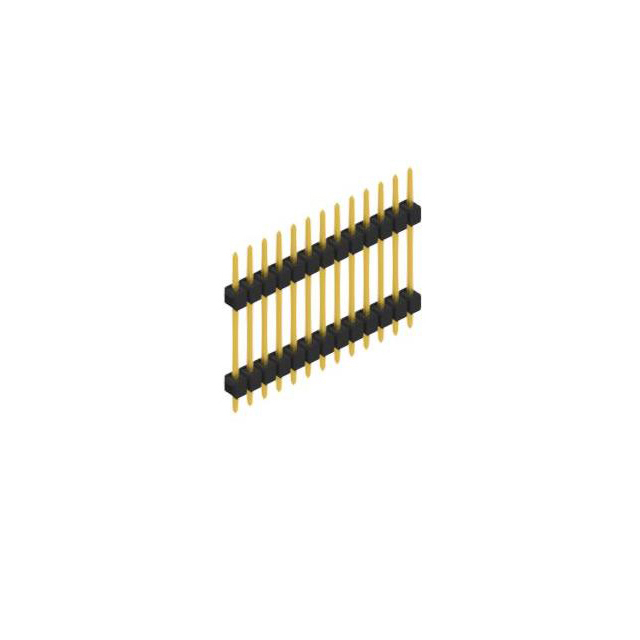

The SL 5 172 13 G is a single-row header connector manufactured by Fischer Elektronik. It features 13 positions with a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated and designed for through-hole termination. The overall contact length measures 0.689 inches (17.50 mm), while the mating contact length is 0.433 inches (11.00 mm). The pin length is 0.118 inches (3.00 mm). The housing is black, constructed from polyamide (PA46), and the component is currently in an active production status.

Headers, Male Pins Feature Summary

• Gold-plated contacts ensure reliable conductivity and corrosion resistance
• Polyamide insulation provides structural stability and thermal endurance
• Single-row design facilitates compact circuit board integration

Headers, Male Pins Applications

• General electronic interconnect systems
• Industrial control module connections
• Signal transmission in measurement technology

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm current availability and manufacturing status. Ensure that the required contact plating thickness and insulation material specifications align with the project's technical requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole header with gold contacts is required. Consider the 0.100 inch pitch and total height constraints. Verify compatibility with mating sockets regarding contact length and housing dimensions to ensure proper mechanical engagement.

Headers, Male Pins Part Context

This connector belongs to the SL series of rectangular connectors produced by Fischer Elektronik. The series offers various configurations including different row counts, pin quantities, and contact surface treatments. This specific model represents a standard single-row option within the manufacturer's extensive portfolio of interconnect solutions.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik cross-reference data for verified substitute part numbers. Do not assume interchangeability with generic headers without confirming identical electrical ratings, mechanical dimensions, and mounting specifications.
