SL 5 415 35 Z

Headers, Male Pins Overview

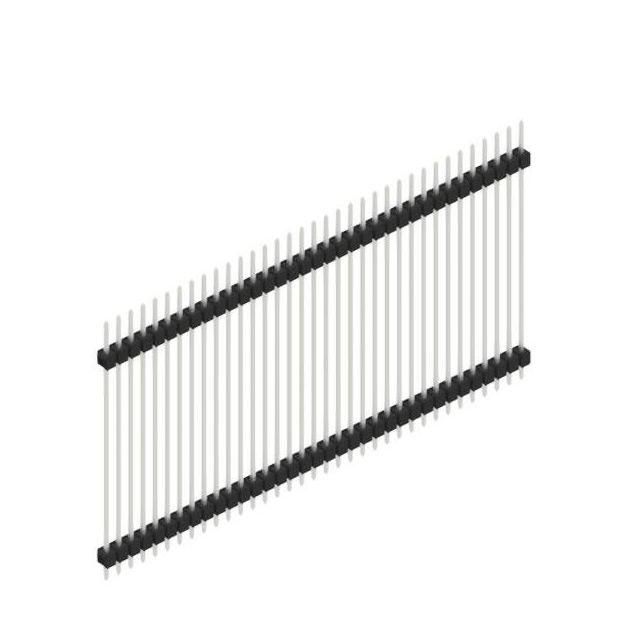

The SL 5 415 35 Z is a single-row male header connector manufactured by Fischer Elektronik. It features 35 positions with a 0.635 mm (0.025 inch) pitch, designed for through-hole mounting. The contacts are gold-plated to ensure reliable signal transmission. Key dimensions include an overall contact length of 2.000 inches (50.80 mm) and an insulation height of 0.110 inches (2.79 mm). The connector supports a current rating of 3A and a voltage rating of 250VAC, operating within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Gold-plated square contacts provide durable interconnection capabilities.
• Single-row design facilitates compact PCB assembly layouts.
• Through-hole mounting ensures secure mechanical attachment.

Headers, Male Pins Applications

• Stacked printed circuit board interconnections
• Precision electronic assemblies requiring reliable signal paths
• Industrial control modules

Headers, Male Pins Procurement Notes

Verify the specific contact finish and pin length requirements against the official datasheet before procurement. Ensure that the through-hole footprint matches the target PCB design specifications. Confirm compatibility with mating connectors regarding pitch and row configuration to prevent assembly errors.

Headers, Male Pins Selection Notes

Select this component when precise 0.635 mm spacing is required for high-density applications. The extended pin length suits stacked PCB configurations. Evaluate thermal stability needs against the specified operating range. Consider the gold plating for environments demanding low contact resistance and corrosion resistance.

Headers, Male Pins Part Context

This part belongs to the SL 5 415 series of male headers from Fischer Elektronik. The series is characterized by precision engineering for complex electronic assemblies. Variants in this line differ primarily in position count and pin length, catering to diverse stacking and interconnection needs within the same structural framework.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 35-position count, and through-hole mounting style. Verify that alternative components offer equivalent gold-plated contacts and similar dimensional constraints to ensure mechanical and electrical compatibility without redesigning the PCB footprint.

Headers, Male Pins FAQ

What is the contact material and finish?

The contacts are made of copper alloy and feature a gold plating finish to enhance conductivity and durability.

Is this connector suitable for stacked PCBs?

Yes, the extended pin length of 2.000 inches is specifically designed for interconnecting stacked printed circuit boards.
