SL LP 1 082 9 S

Headers, Male Pins Overview

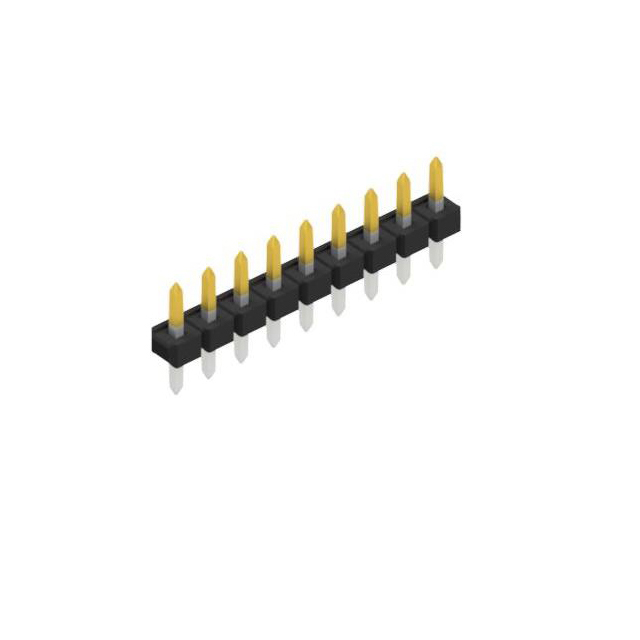

The SL LP 1 082 9 S is a male header connector manufactured by Fischer Elektronik. It features a single row with 9 positions and a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, the component utilizes tin-plated copper alloy contacts. The housing is constructed from polyamide (PA46), providing UL 94 V-0 flammability rating. The contact length measures 0.319 inches (8.10 mm), while the column length is 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB integration.
• Polyamide insulation material ensuring UL 94 V-0 flame retardancy.
• Tin-plated copper alloy contacts for reliable electrical conductivity.

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections.
• PCB-to-PCB signal transmission modules.
• Industrial control system interface connections.

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required pin count and pitch specifications before procurement. Confirm that the through-hole mounting style aligns with the target printed circuit board layout. Ensure environmental conditions meet the polyamide insulation temperature ratings. Cross-reference manufacturer documentation to validate compliance with RoHS directives and UL safety standards for the intended application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for direct PCB insertion. The 2.54 mm pitch ensures compatibility with standard ribbon cables and mating connectors. Consider the thermal resistance of the polyamide housing during high-current applications. Verify mechanical stability requirements against the through-hole termination strength. Evaluate space constraints due to the compact physical dimensions of the housing structure.

Headers, Male Pins Part Context

This component belongs to the SL LP series of low-profile straight connectors produced by Fischer Elektronik. The series is characterized by compact designs suitable for dense electronic assemblies. These headers are engineered for robust mechanical performance in industrial environments. The product line emphasizes reliability through standardized pitch dimensions and durable insulation materials.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers within the SL LP series featuring identical 2.54 mm pitch and 9-position configurations. Ensure replacement parts maintain matching through-hole mounting characteristics and similar housing material properties for consistent assembly processes.

Headers, Male Pins FAQ

What is the flammability rating of the connector housing?

The polyamide housing meets the UL 94 V-0 flammability rating standard.

What type of termination does this connector use?

The connector utilizes a through-hole mounting method for soldering onto the PCB.
