SL LP 1 097 19 Z

Headers, Male Pins Overview

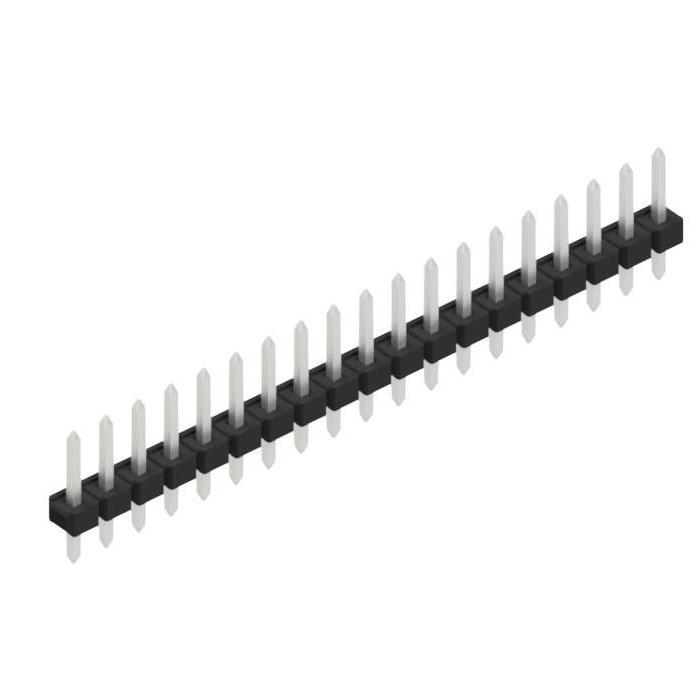

The SL LP 1 097 19 Z is a 19-position board-to-board connector spacer from the Fischer Elektronik SL 13 series. Designed for through-hole mounting, this component features a 0.100-inch (2.54 mm) pin spacing and a single row configuration. The contact surfaces are gold-plated to ensure reliable conductivity. It serves as a stacking element in rectangular connector systems, providing structural separation between circuit boards while maintaining precise alignment.

Headers, Male Pins Feature Summary

• Provides mechanical support and electrical isolation for stacked printed circuit boards
• Features gold-plated contacts for enhanced signal integrity and corrosion resistance
• Utilizes a standard 0.100-inch pitch for compatibility with common board layouts
• Designed for secure through-hole soldering to ensure stable mechanical attachment

Headers, Male Pins Applications

• Vertical stacking of electronic modules within compact enclosures
• Creating standardized height offsets in multi-layer PCB assemblies
• Structural reinforcement in modular instrumentation chassis
• Alignment support in high-density interconnect systems

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm pin count and plating specifications. Ensure that the required insulation height and overall length match the design constraints of the target assembly. Cross-reference the series designation to confirm compatibility with mating connectors within the same product family before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component based on the required number of positions and the necessary standoff height for the application. Confirm that the through-hole termination method aligns with the manufacturing process capabilities. Evaluate the gold plating requirement against environmental conditions to determine if it meets the necessary durability standards for the intended operational lifespan.

Headers, Male Pins Part Context

This component belongs to the SL 13 series of board spacers manufactured by Fischer Elektronik. These spacers are engineered to work in conjunction with matching header and socket connectors to create robust board-to-board interfaces. The series offers various position counts and heights to accommodate diverse mechanical integration requirements in industrial and commercial electronics.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct substitutes within the SL 13 series. Verify that any alternative part maintains identical pin count, pitch, and physical dimensions to ensure interchangeability without modifying the host PCB layout.
