SL LP 2 164 36 S

Headers, Male Pins Overview

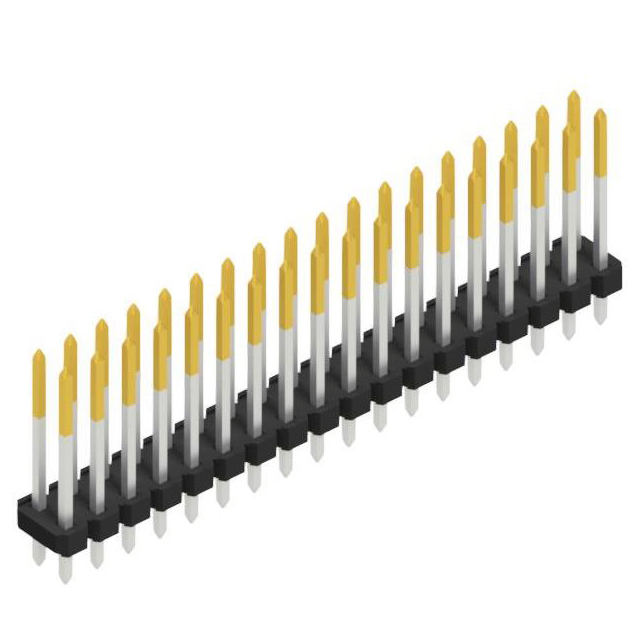

The SL LP 2 164 36 S is a single-row, through-hole pin header manufactured by Fischer Elektronik. It features 36 positions with a 0.100 inch (2.54 mm) contact spacing. The connector utilizes square male pins made of copper-tin alloy, finished with tin plating on both the mating and post sections. The housing is constructed from polyamide (PA46), providing an insulation height of 0.110 inches (2.80 mm). The total contact length measures 0.441 inches (11.20 mm), comprising a 0.213-inch (5.40 mm) mating length and a 0.118-inch (3.00 mm) post length.

Headers, Male Pins Feature Summary

• Single-row pin header configuration designed for through-hole mounting
• Square male pin geometry with tin-plated copper-tin contacts
• Polyamide (PA46) insulating housing structure

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Signal transmission in industrial control systems
• Power distribution within modular equipment assemblies

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 36-position count and 2.54 mm pitch. Confirm the polyamide material specification aligns with thermal requirements. Ensure the through-hole footprint dimensions correspond to the target PCB design. Check for any specific RoHS compliance documentation if required by the end application standards.

Headers, Male Pins Selection Notes

Select this component when a standard 2.54 mm pitch single-row header is required for reliable signal or power routing. The square pin design offers stability during insertion. Consider the PA46 insulation for standard operating temperatures. Evaluate the 36-pin capacity against the necessary I/O density for the specific interface layout.

Headers, Male Pins Part Context

This component belongs to the SL 11 164 series of rectangular connectors produced by Fischer Elektronik. The series provides standardized pin headers for various connection densities. The SL LP variant specifically denotes the low-profile through-hole construction suitable for dense PCB layouts requiring robust mechanical retention.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers with identical 36-position counts and 2.54 mm spacing. Verify compatibility with existing mating sockets regarding pin length and housing width. Cross-reference with generic 2.54 mm pin headers only if mechanical tolerances and current ratings are confirmed equivalent.
