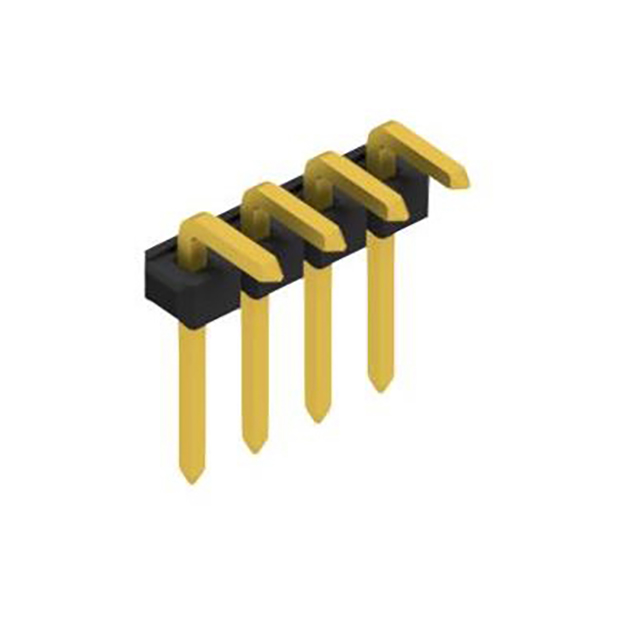

SL LP 3 069 4 G

SL LP 3 069 4 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is LOW PROFILE, ANGLED, 0.635 MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL LP 3 069 4 G

• Description：LOW PROFILE, ANGLED, 0.635 MM
• Series：SL LP 3 069
• Mfr：Fischer Elektronik
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：4
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.272" (6.90mm)
• Contact Length - Post：0.118" (3.00mm)
• Overall Contact Length：-
• Insulation Height：0.067" (1.70mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：7.87µin (0.200µm)
• Contact Finish - Post：Gold
• Contact Material：Copper Tin
• Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
• Features：-
• Operating Temperature：-40°C ~ 163°C
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL LP 3 069 4 G
