SL LP 4 069 18 G

Headers, Male Pins Overview

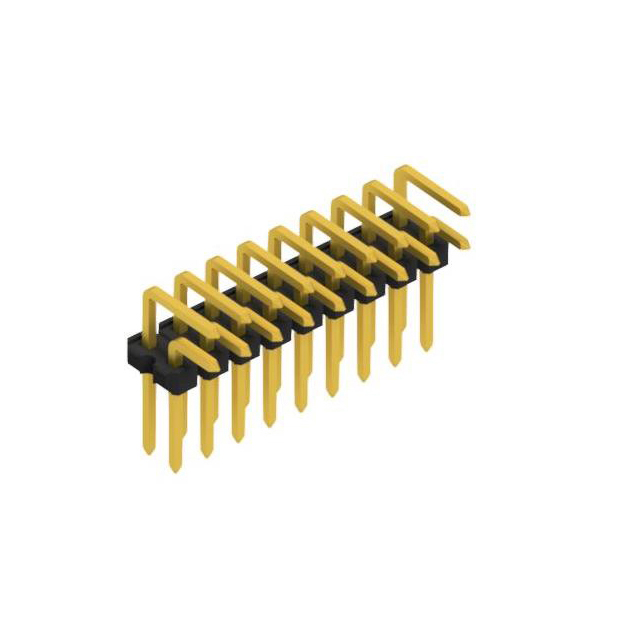

The SL LP 4 069 18 G is a male pin header connector manufactured by Fischer Elektronik. It features 18 positions arranged in two rows with a 2.54 mm pitch and 2.00 mm row spacing. The connector utilizes through-hole termination and gold-plated contacts for reliable signal transmission. Designed as a low-profile, angled header, it optimizes space within electronic assemblies while maintaining structural integrity for board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Low profile angled design for compact assembly integration
• Gold-plated copper alloy contacts for corrosion resistance
• Two-row configuration with precise 2.54 mm positioning

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connection modules
• Compact electronic device housing

Headers, Male Pins Procurement Notes

Verify the specific part number suffix against official Fischer Elektronik documentation to confirm contact finish and material specifications. Ensure compatibility with mating connectors regarding pitch and row spacing. Cross-reference datasheet dimensions for mechanical fit within the target enclosure before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when space constraints require a low-profile solution with angled entry. The 2.54 mm pitch ensures broad compatibility with standard PCB layouts. Verify that the two-row layout meets the circuit density requirements of the specific application design.

Headers, Male Pins Part Context

This model belongs to the SL LP 4 series of precision-engineered headers. The series is characterized by its angled geometry and low profile, designed to reduce overall assembly height. The specific variant defines the pole count and contact plating suitable for general-purpose electronic interconnects.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Ensure exact matching of pitch, row count, and contact finish when sourcing alternatives from other manufacturers.
