SL LP 4 069 48 G

Headers, Male Pins Overview

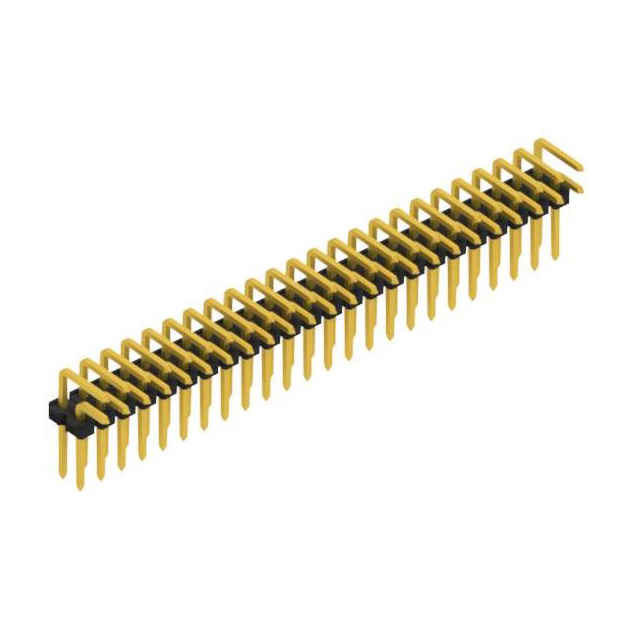

The SL LP 4 069 48 G is a Fischer Elektronik male pin header featuring 48 positions in a dual-row configuration. It utilizes a 0.100-inch (2.54 mm) contact pitch with a 0.100-inch row spacing. The connector employs through-hole termination and features gold-plated contacts with a thickness of 7.87 µin (0.200 µm). The assembly includes a black housing and measures 1.606 inches (40.792 mm) in overall length, with a mating height of 0.433 inches (11.000 mm) and a solder tail length of 0.130 inches (3.300 mm).

Headers, Male Pins Feature Summary

• Low profile angled design for space optimization
• Gold-plated CuSn alloy contacts for reliable performance
• Dual-row board-to-board or wire-to-board connectivity

Headers, Male Pins Applications

• Compact electronic assemblies requiring low profile headers
• Board-to-board interconnection systems
• Wire-to-board connections in dense layouts

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to ensure compatibility with your PCB footprint and mating requirements. Confirm that the gold plating thickness and mechanical dimensions meet your design specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for high-density applications. Ensure the PCB layout accommodates the 2.54 mm pitch and 2.00 mm row spacing. Verify that the through-hole mounting style aligns with your manufacturing capabilities.

Headers, Male Pins Part Context

This component belongs to the SL LP 4 series of precision-engineered connectors from Fischer Elektronik. The series is characterized by its compact form factor and angled design, intended to optimize space within electronic assemblies while maintaining robust electrical connections.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
