SL LP 5 SMD 051 17 G SM

Headers, Male Pins Overview

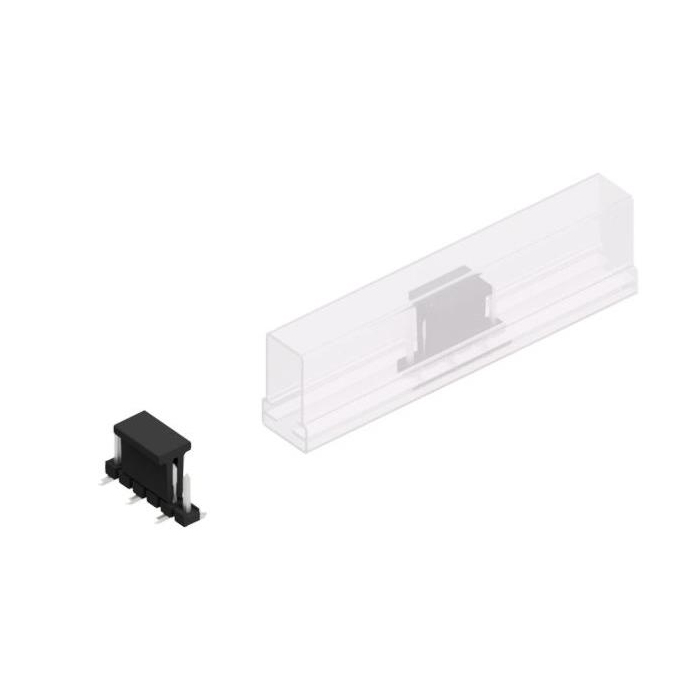

The Fischer Elektronik SL LP 5 SMD 051 17 G SM is a surface-mount male header connector featuring 17 positions in a single row. It utilizes a 2.54 mm (0.100 inch) pitch and offers a low profile height of 0.635 mm. The contacts are constructed from copper-tin alloy with selective gold plating, providing a thickness of at least 0.2 µm over a nickel underlayer. Designed for board-to-board or wire-to-board applications, the connector operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Low profile design optimized for space-constrained surface-mount applications
• Selective gold plating on contact areas ensures reliable signal transmission
• Single-row configuration simplifies PCB layout and assembly processes

Headers, Male Pins Applications

• Board-to-board interconnections in compact electronic modules
• Wire-to-board connections for peripheral interface circuits
• High-density mounting in consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G SM' against the manufacturer's current datasheet to confirm contact plating specifications and packaging details. Ensure the selected variant matches the required operating temperature range and mechanical retention needs for the target application environment.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row surface-mount header is required. The 2.54 mm pitch is standard for general-purpose interconnects. Consider the 0.635 mm height constraint and the availability of mating sockets that match the 0.100 inch spacing and contact geometry.

Headers, Male Pins Part Context

This part belongs to the SL LP 5 SMD series, which focuses on low-profile solutions for surface-mount technology. The series provides various pin counts and configurations to support diverse density requirements in modern electronic manufacturing while maintaining consistent electrical performance standards.

Headers, Male Pins Replacement Considerations

Direct substitutes must maintain the 2.54 mm pitch, single-row format, and surface-mount footprint. Verify compatibility with existing mating connectors regarding contact length and insulation height to ensure proper mechanical engagement.
