SL LP 6 SMD 038 8 Z SM PS

Headers, Male Pins Overview

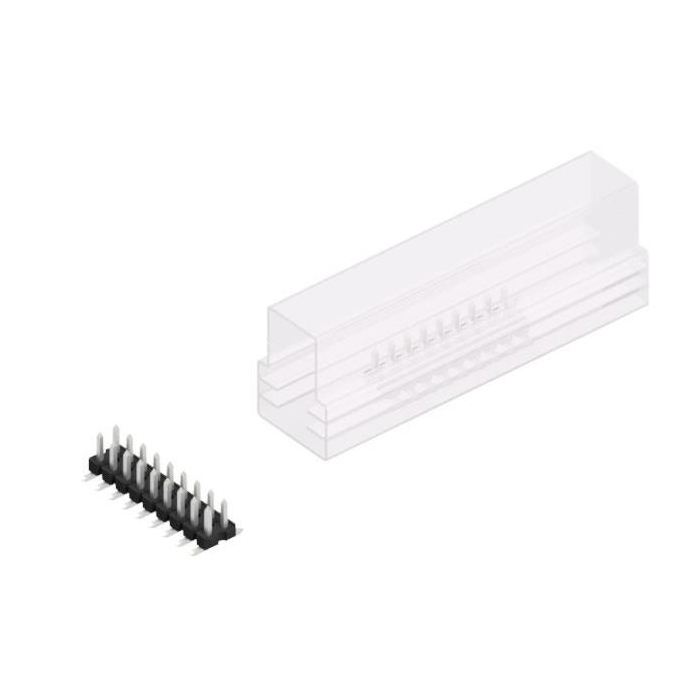

The SL LP 6 SMD 038 8 Z SM PS is a surface mount pin header from Fischer Elektronik. It features an 8-position, 2-row configuration with a 2.54 mm pitch. The component utilizes a low-profile design suitable for space-constrained applications. It is rated for a test voltage of 2000 V and operates within a temperature range of -40°C to +163°C. The insulating body is constructed from PA 4.6 GF material with UL 94 V-0 flammability classification.

Headers, Male Pins Feature Summary

• Low profile surface mount construction for compact board integration
• High dielectric strength with 2000 V test voltage rating
• Thermally stable operation up to 163°C with reflow compatibility

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Compact electronic device assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating and packaging format. Ensure the selected variant matches the required row count and position quantity for the target PCB layout. Cross-reference the thermal specifications with the intended operating environment to guarantee reliability under sustained high temperatures.

Headers, Male Pins Selection Notes

Select this component when a low-height connector is required for dense circuit layouts. The 2.54 mm pitch ensures compatibility with standard through-hole mating connectors. Consider the PA 4.6 GF insulation for robust mechanical stability during soldering processes. Validate that the 2000 V isolation rating meets the safety requirements of the specific application circuit.

Headers, Male Pins Part Context

This part belongs to the SL LP 6 SMD series of surface mount pin headers. The series offers various pole counts and row configurations designed for modern electronics manufacturing. These components are engineered for automated pick-and-place assembly, providing consistent alignment and reliable electrical connections in high-volume production environments.

Headers, Male Pins Replacement Considerations

Consult official substitution lists for compatible alternatives with identical pitch and profile dimensions.
