SL110A

Single Diodes Overview

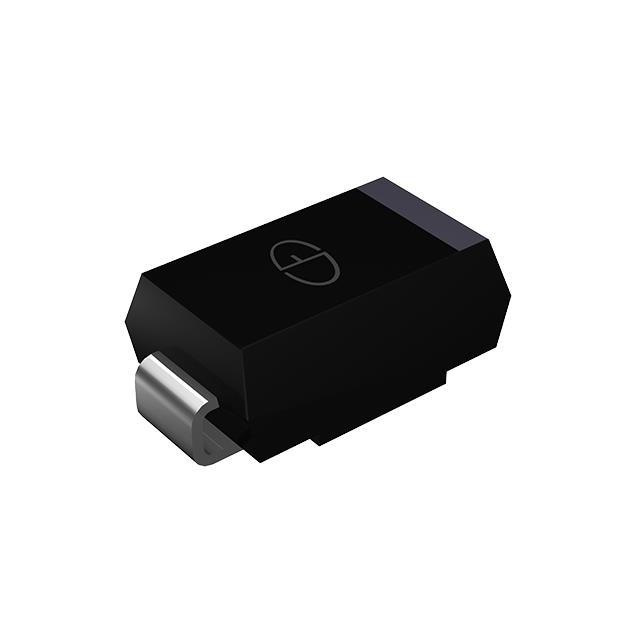

The SL110A is a surface mount Schottky rectifier manufactured by Good-Ark Semiconductor, housed in the DO-214AC (SMA) package. It features a maximum repetitive peak reverse voltage of 100 V and a maximum DC blocking voltage of 100 V. The device supports a maximum average forward rectified current of 1 A at case temperature limits and can withstand a peak forward surge current of 45 A for an 8.3 ms half-sine wave. The typical instantaneous forward voltage is 0.68 V at 1 A, with a maximum DC reverse current of 0.2 mA at 25°C and 10 mA at 100°C. Thermal resistance from junction to ambient is 80 °C/W, while junction-to-terminal resistance is 2 °C/W. The operating junction temperature range extends from -55°C to +150°C.

Single Diodes Feature Summary

• Utilizes metal-semiconductor junction technology for majority carrier conduction, resulting in low forward voltage drop and low leakage current.
• Complies with MIL-S-19500D environmental standards and maintains moisture sensitivity level 1 per J-STD-020.
• Designed for automated placement processes with a molded plastic case suitable for high-temperature soldering.

Single Diodes Applications

• General purpose rectification in lighting systems
• Freewheeling diodes in power supply circuits
• Rectification in inverters and converters for consumer electronics

Single Diodes Procurement Notes

Verify the specific part marking against the official Good-Ark datasheet to confirm the SMA package and 100V rating. Ensure procurement channels provide documentation confirming compliance with MIL-S-19500D environmental standards. Check that the supplier guarantees the component meets the specified thermal resistance values and operates within the stated junction temperature range of -55°C to +150°C.

Single Diodes Selection Notes

Select the SL110A when a 100V reverse voltage rating is required alongside a 1A continuous forward current capability in a compact surface mount form factor. Consider this component for applications demanding low forward voltage drop to minimize power loss and high surge current tolerance up to 45A. The DO-214AC package is suitable for space-constrained designs requiring automated assembly compatibility.

Single Diodes Part Context

The SL110A belongs to the SL12A through SL110A series of surface mount Schottky rectifiers produced by Good-Ark Semiconductor. This family shares identical electrical characteristics regarding forward current and package type, differing primarily in their maximum repetitive peak reverse voltage ratings which range from 20V to 100V across the series variants.

Single Diodes Replacement Considerations

Substitutes must match the 100V reverse voltage, 1A forward current, and DO-214AC package dimensions. Verify equivalent forward voltage drop and reverse leakage current specifications to ensure circuit performance parity.

Single Diodes FAQ

What is the maximum operating junction temperature for the SL110A?

The maximum operating junction temperature for the SL110A is +150°C.

Does the SL110A meet specific environmental standards?

Yes, the SL110A meets the environmental standard MIL-S-19500D.
