SLA6868MH

Overview

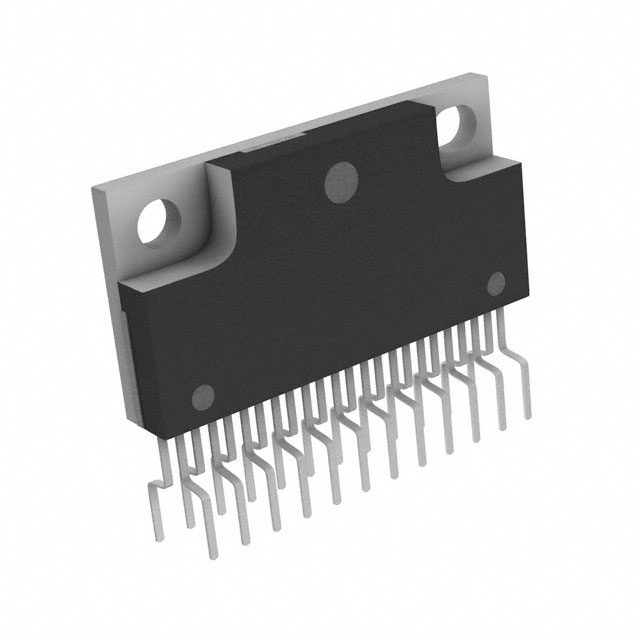

The SLA6868MH is a high-voltage three-phase motor driver manufactured by Sanken Electric. It supports output currents ranging from 1 A to 3 A and operates with a maximum voltage of 500 V. The component integrates the necessary power stages for driving three-phase motors, simplifying system design by combining control logic and power switching into a single package.

Feature Summary

• Integrates high-voltage power stages for three-phase motor control
• Supports variable current outputs up to 3 A
• Designed for simplified implementation in motor drive applications

Applications

• Three-phase AC motor control systems
• Industrial automation equipment drives
• High-voltage motor driver circuits

Procurement Notes

Verify the specific suffix and manufacturer details upon ordering. Confirm that the supplier provides official documentation from Sanken Electric USA Inc. or authorized distributors. Ensure the component matches the required voltage and current specifications for the target application before purchase.

Selection Notes

Select this driver when a compact solution for high-voltage three-phase motor control is required. Consider the 500 V rating and 3 A current capacity against load requirements. Evaluate thermal management needs due to integrated power stage operation within the package.

Part Context

This component belongs to Sanken's series of high-voltage motor drivers. Similar parts include the SLA6868M and SLA6868MZ, which share functional characteristics but may differ in packaging or specific electrical ratings within the same product family.

Replacement Considerations

Potential substitutes include the SLA6868M and SLA6868MZ from Sanken Electric. Cross-reference pinouts and electrical limits before substitution.
