SLA6868MZ-LF2175

Overview

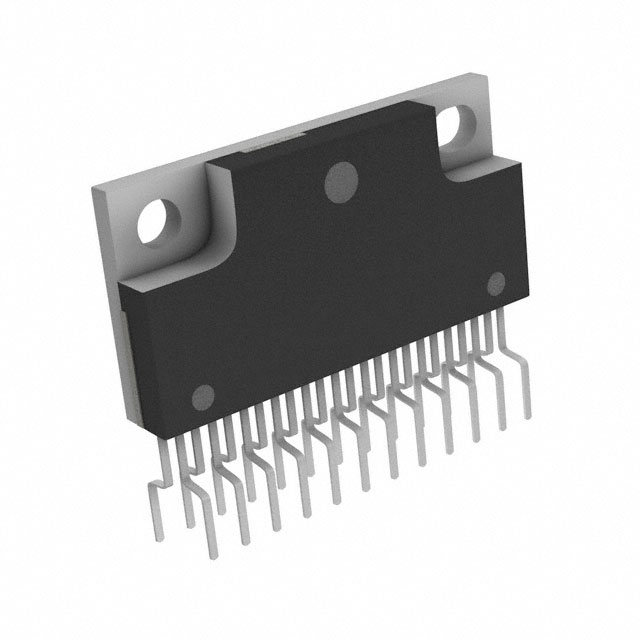

The SLA6868MZ-LF2175 is a fully integrated motor driver IC manufactured by Sanken Electric USA Inc., designed for AC and synchronous motors. It utilizes IGBT technology to provide three half-bridge outputs with a maximum load voltage of 400V and an output current of 3A. The device operates within a supply voltage range of 13.5V to 16.5V and supports parallel interface control. Packaged in a 23-SIP LF2175 format, it features a junction temperature operating range from -20°C to 150°C. This component integrates both control logic and power stages into a single unit.

Feature Summary

• Fully integrated design combining control logic and power stage
• Three-channel half-bridge output configuration
• IGBT-based power technology for high-voltage applications

Applications

• Home appliances

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to ensure accurate identification. Confirm RoHS compliance status and environmental classifications prior to procurement. Check for obsolescence notices or minimum order quantity restrictions as the component may be marked as not recommended for new designs. Ensure compatibility with existing system interfaces and thermal management requirements before finalizing purchase orders.

Selection Notes

Select this component when a compact, fully integrated solution for driving AC or synchronous motors is required. The 400V load voltage capability makes it suitable for higher voltage applications compared to standard low-voltage drivers. Consider the 23-SIP package constraints for PCB layout and thermal dissipation. Verify that the 3A output current meets the specific motor drive requirements of the target application.

Part Context

This component belongs to the SLA68xx series of motor driver ICs from Sanken Electric. These devices are characterized by their use of IGBT technology and integration of gate drive circuits. The SLA6868MZ variant specifically targets applications requiring robust motor control in consumer electronics and home appliance sectors, offering a balance of performance and integration density.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for potential cross-reference options.
