SLB-25VR3F

LED Indication - Discrete Overview

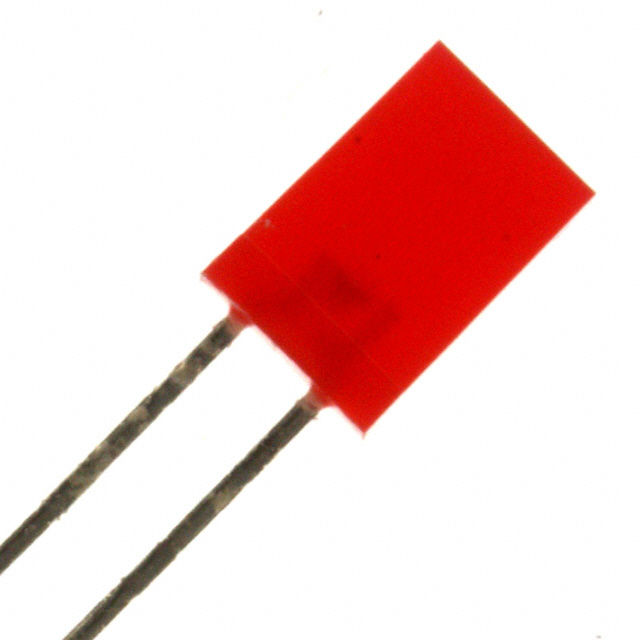

The SLB-25VR3F is a single-color red LED from ROHM Semiconductor, designed for through-hole mounting. It features a diffused lens with a rectangular footprint measuring 2 mm by 5 mm. The component emits light at a dominant wavelength of 630 nm and operates with a forward voltage of approximately 2 V. It provides bright red indication suitable for visible signal applications.

LED Indication - Discrete Feature Summary

• Provides bright red illumination for clear visual signaling
• Utilizes a diffused lens to ensure uniform light distribution
• Designed for standard through-hole PCB mounting

LED Indication - Discrete Applications

• Visible status indicators in electronic devices
• Panel mount indicator lights
• General purpose signal indication

LED Indication - Discrete Procurement Notes

Verify the active status of this component directly with ROHM Semiconductor or authorized distributors, as availability may vary. Confirm that the specific ordering suffix matches the required electrical and mechanical specifications for your design. Ensure compliance with RoHS directives if applicable to your project requirements before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a compact, rectangular form factor is required for panel or board mounting. The diffused lens option is preferred for applications needing wide viewing angles and soft light emission rather than focused beams. Consider the 2 mm x 5 mm dimensions against available space constraints on the target PCB layout.

LED Indication - Discrete Part Context

This part belongs to the SLB series of discrete LEDs manufactured by ROHM Semiconductor. The series offers various color options and lens configurations to suit different indication needs. The SLB-25VR3F specifically addresses the need for red indication in a standard through-hole package format commonly used in industrial and consumer electronics.

LED Indication - Discrete Replacement Considerations

Direct substitutes include other ROHM parts within the SLB series such as SLB-25VR or SLB-25VR3FG, which share similar physical dimensions and mounting styles but may differ in specific optical characteristics or packaging details.
