SLFB21-5R500G-31TF

Overview

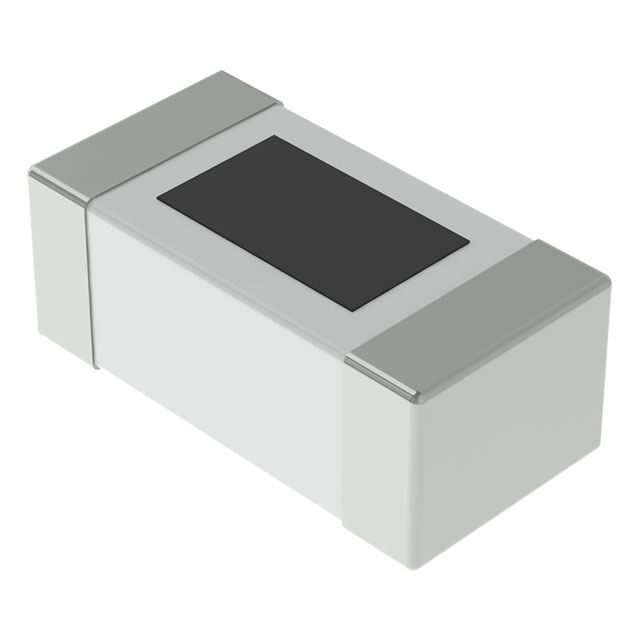

The SLFB21-5R500G-31TF is a multilayer chip LC band pass filter manufactured by Shenzhen Sunlord Electronics Co., Ltd. It operates with a center frequency of 5.5 GHz and utilizes a 0603 (1608 Metric) surface-mount package. The component features a minimum attenuation of 30 dB within the frequency range of 9800 MHz to 11900 MHz. It is supplied in tape and reel packaging and maintains an active product status for integration into RF circuits.

Feature Summary

• Multilayer chip LC construction for compact RF filtering
• Surface-mount 0603 package design
• High attenuation performance at specified frequencies

Applications

• RF signal processing in communication equipment
• Wireless device circuit integration
• Signal filtering in electronic systems requiring 5.5 GHz band selection

Procurement Notes

Verify the specific part number SLFB21-5R500G-31TF against official manufacturer documentation to confirm current availability and technical specifications. Ensure that the supplier provides genuine components from Shenzhen Sunlord Electronics Co., Ltd. Cross-reference datasheet details regarding the 0603 package dimensions and electrical characteristics before finalizing procurement orders to guarantee compatibility with target designs.

Selection Notes

Select this component when a 5.5 GHz center frequency band pass filter is required for space-constrained applications. The 0603 footprint suits high-density PCB layouts. Confirm that the 30 dB minimum attenuation specification meets the system's interference rejection requirements. Evaluate the multilayer LC technology suitability for the intended operating environment and signal integrity needs.

Part Context

This component belongs to the SLFB series of multilayer chip LC band pass filters produced by Shenzhen Sunlord Electronics Co., Ltd. The series focuses on providing efficient radio frequency filtering solutions in compact surface-mount packages. The SLFB21 variant specifically addresses applications requiring precise frequency selection around the 5.5 GHz range.

Replacement Considerations

Consult official Sunlord documentation for verified substitute part numbers within the SLFB series or compatible alternative models. Do not assume interchangeability based solely on package size; verify electrical parameters such as center frequency and attenuation levels.
