SLFB22-1R917G-A4TF

Overview

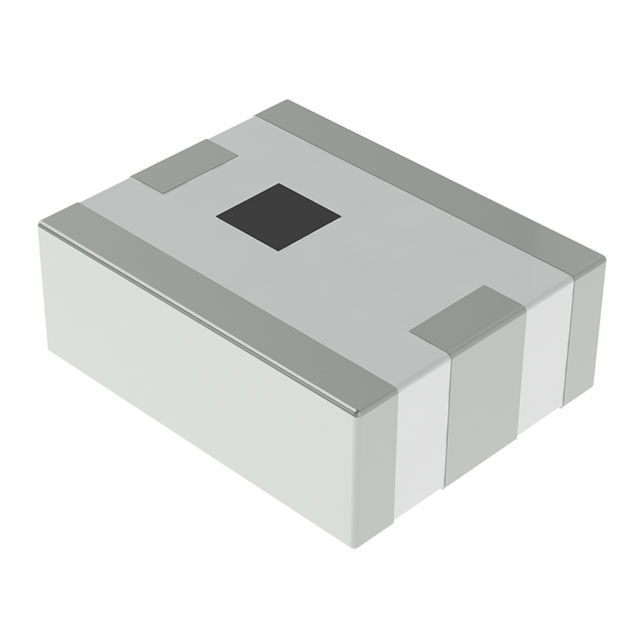

The SLFB22-1R917G-A4TF is a band pass RF filter manufactured by Shenzhen Sunlord Electronics Co., Ltd. It operates with a center frequency of 1.917 GHz and provides a bandwidth of 100 MHz. The component exhibits an insertion loss of 1.9 dB. It is housed in a surface-mount 1008 package, corresponding to the 2520 metric size, and features a four-pad configuration for PCB mounting.

Feature Summary

• Provides band pass filtering functionality for radio frequency applications
• Designed for surface mount assembly on printed circuit boards

Applications

• RF signal processing in wireless communication systems
• Frequency selection in mobile device front-end modules
• Signal conditioning in consumer electronics requiring specific RF bands

Procurement Notes

Verify the part number SLFB22-1R917G-A4TF against official manufacturer specifications before ordering. Ensure compatibility with the target center frequency of 1.917 GHz and the required 1008 package dimensions. Confirm that the supplier provides genuine components with appropriate documentation to guarantee performance integrity.

Selection Notes

Select this component when a precise band pass response at 1.917 GHz is required. Consider the 1.9 dB insertion loss and 100 MHz bandwidth constraints relative to system requirements. The 1008 footprint dictates the available board space and routing density for the design.

Part Context

This component belongs to the SLFB series of band pass RF filters produced by Shenzhen Sunlord Electronics Co., Ltd. The company specializes in passive electronic components, including chip inductors, beads, and filters. This specific model addresses niche RF filtering needs within their broader portfolio of surface-mount devices.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Verify cross-reference options directly with the manufacturer or authorized distributors to ensure electrical equivalence and mechanical fit.
