SLFBF21-2R450G-A11T

Overview

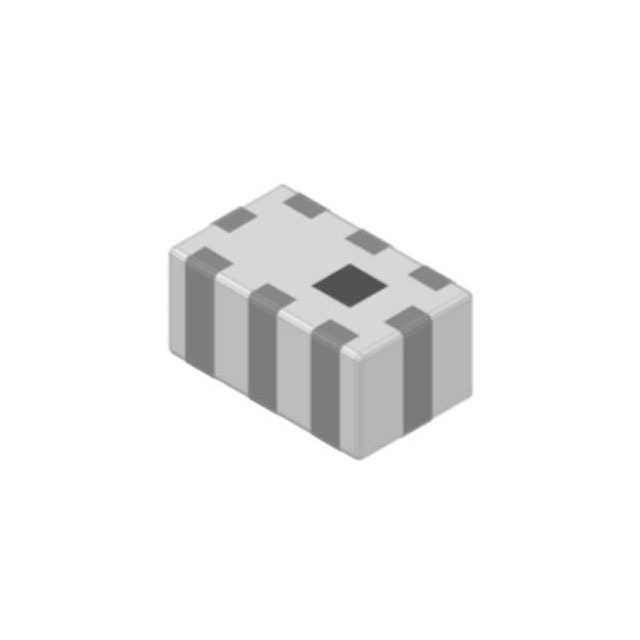

The SLFBF21-2R450G-A11T is a balanced RF filter manufactured by Shenzhen Sunlord Electronics Co., Ltd. It operates at a center frequency of 2.45GHz with a bandwidth of 100MHz. The component features an insertion loss of 2.5dB and is housed in an 0805 (2012 Metric) surface-mount package. It is supplied in tape and reel packaging and maintains an active product status.

Feature Summary

• Balanced RF filter architecture for differential signal processing
• Optimized for 2.45GHz ISM band applications
• Compact 0805 surface-mount footprint

Applications

• Wireless local area network (WLAN) modules
• Bluetooth low energy (BLE) transceivers
• Industrial, scientific, and medical (ISM) radio equipment

Procurement Notes

Verify the specific datasheet version from Shenzhen Sunlord Electronics Co., Ltd. to confirm electrical tolerances and pin configurations. Ensure compatibility with balanced circuit designs requiring differential filtering at 2.45GHz. Confirm that the 0805 package dimensions align with the target PCB layout constraints before finalizing procurement.

Selection Notes

Select this component when a balanced filter topology is required for 2.45GHz signals. The 100MHz bandwidth suits narrowband ISM applications. Compare insertion loss specifications against system link budget requirements. Ensure the design supports differential signaling to utilize the balanced nature of the filter effectively.

Part Context

This part belongs to Sunlord's RF filter portfolio, which includes various chip components for communications and consumer electronics. The SLFB series focuses on balanced filter solutions, distinguishing it from single-ended counterparts within the manufacturer's lineup. These components support modern wireless standards requiring compact, high-performance filtering.

Replacement Considerations

Cross-reference with other Sunlord balanced filters such as SLFBF21-2R450G-B01T for potential pin-compatible alternatives. Verify that substitute parts maintain the same 2.45GHz center frequency and 0805 package size to ensure mechanical and electrical compatibility without redesigning the host circuit board.

FAQ

Is the SLFBF21-2R450G-A11T designed for single-ended or balanced circuits?

It is designed as a balanced RF filter, intended for use in differential signal paths.

What is the specified bandwidth for this filter?

The component has a specified bandwidth of 100MHz centered at 2.45GHz.
