SLFL18-2R700G-03TF

Overview

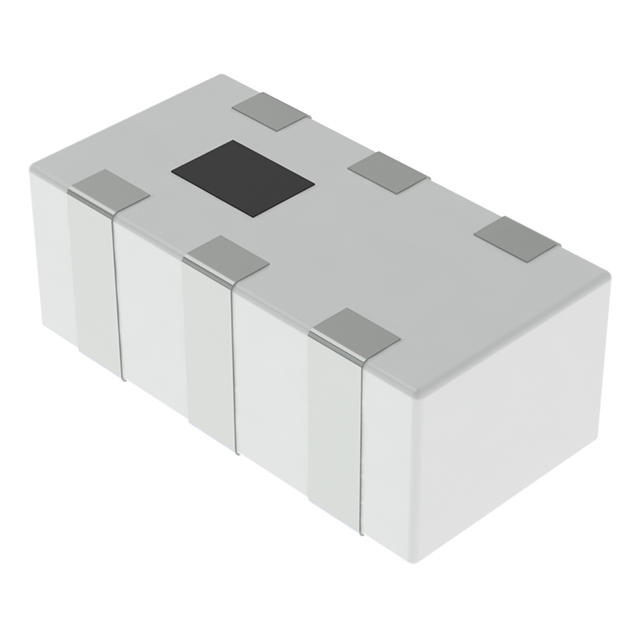

The SLFL18-2R700G-03TF is a multilayer chip low-pass LC filter manufactured by Shenzhen Sunlord Electronics Co., Ltd. It features a center frequency of 2700 MHz and a bandwidth ranging from 2300 to 2700 MHz. The component exhibits an insertion loss of 0.5 dB and provides a minimum attenuation of 30.0 dB at frequencies between 4600 and 5400 MHz. Designed for surface-mount installation, it utilizes a 0603 (1608 metric) package with dimensions of 1.60mm length, 0.80mm width, and a maximum height of 0.70mm.

Feature Summary

• Multilayer ceramic construction for compact RF filtering applications
• Low insertion loss characteristics for signal integrity preservation
• High attenuation performance in specified stopband frequencies
• RoHS compliant and lead-free manufacturing process

Applications

• RF front-end modules requiring low-pass filtering
• Wireless communication systems operating near 2.7 GHz
• Mobile device circuitry for harmonic suppression
• General-purpose RF signal conditioning

Procurement Notes

Verify the complete part number including suffixes against official manufacturer documentation to ensure correct specifications. Confirm package type and termination style match design requirements. Check for RoHS compliance status if required by project standards. Ensure storage conditions adhere to moisture sensitivity level guidelines upon receipt.

Selection Notes

Select this component when a low-pass filter with a 2700 MHz center frequency is required. Consider the 0.5 dB insertion loss and 30 dB stopband attenuation for signal quality needs. The 0603 footprint suits space-constrained PCB layouts. Verify compatibility with operating temperature ranges and power handling capabilities specific to the application environment.

Part Context

This component belongs to the SLFL series of multilayer chip filters produced by Shenzhen Sunlord Electronics Co., Ltd. The series focuses on providing compact, high-performance RF solutions for modern electronic devices. The SLFL18-2R700G-03TF specifically addresses low-pass filtering needs within the microwave frequency range, utilizing advanced ceramic materials for stability.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult manufacturer cross-reference guides or technical support for verified alternatives that match electrical and mechanical specifications.
