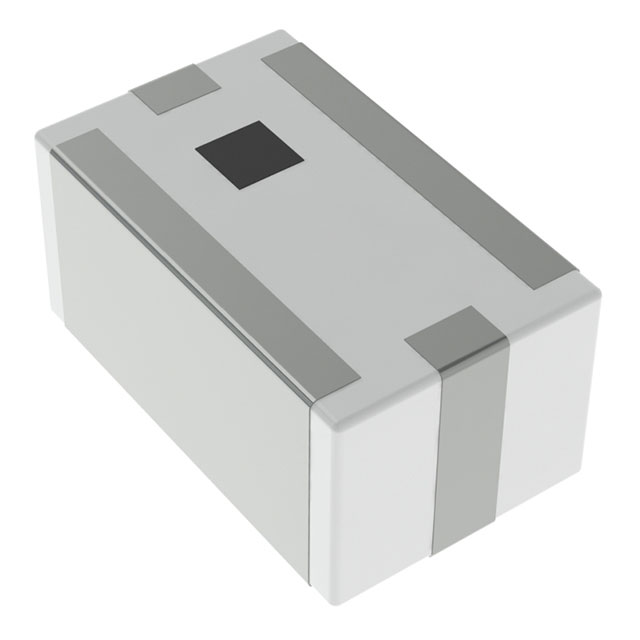

SLFL21-2R450G-G9TF

$0.14

Description：RF FILTER LOW PASS 2.45GHZ 0805
Series：SLFL
Mfr：Shenzhen Sunlord Electronics Co., Ltd.
Package：Tape & Reel (TR)

SKU:1c81fee5b92c Category: RF Filters Brand: Shenzhen Sunlord Electronics Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF FILTER LOW PASS 2.45GHZ 0805
Series：SLFL
Mfr：Shenzhen Sunlord Electronics Co., Ltd.
Package：Tape & Reel (TR)
Frequency：2.45GHz Center
Bandwidth：100MHz
Filter Type：Low Pass
Ripple：-
Insertion Loss：0.5dB
Mounting Type：Surface Mount
Package / Case：0805 (2012 Metric), 4 PC Pad
Size / Dimension：0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max)：0.020" (0.50mm)

Download product information

SLFL21-2R450G-G9TF

Overview

The SLFL21-2R450G-G9TF is a passive low-pass RF filter manufactured by Shenzhen Sunlord Electronics Co., Ltd. It operates with a center frequency of 2450 MHz and a bandwidth of 100 MHz, targeting the 2.4 GHz ISM band. The component features an insertion loss of 0.5 dB and provides a minimum attenuation of 25 dB at 4 times the center frequency (9800 MHz). It is housed in a surface-mount package designed for compact electronic integration.

Feature Summary

Passive low-pass filter technology optimized for high-frequency signal integrity
Designed specifically for operation within the 2.4 GHz ISM band applications
Surface mount construction suitable for automated assembly processes

Applications

Wireless local area network (WLAN) systems operating in the 2.4 GHz band
Bluetooth communication modules requiring signal filtering
Industrial, Scientific, and Medical (ISM) radio equipment

Procurement Notes

Verify the specific ordering suffix G9TF against official manufacturer documentation to confirm package type and tape/reel specifications. Ensure compatibility with standard surface-mount assembly profiles. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Confirm moisture sensitivity level requirements prior to storage and handling.

Selection Notes

Select this component when a low-pass filter is required for the 2.4 GHz ISM band with minimal insertion loss. Consider the 0.5 dB insertion loss and 25 dB stopband attenuation at 9800 MHz as key performance indicators. Evaluate the surface-mount package dimensions against available board space constraints before finalizing the design.

Part Context

This component belongs to the SLFL21 series of multilayer chip filters from Shenzhen Sunlord Electronics. The series utilizes passive filter technology to suppress electromagnetic interference across various frequency ranges. Sunlord is a recognized developer in the passive component industry, offering solutions for wireless communication and general electronics markets.
