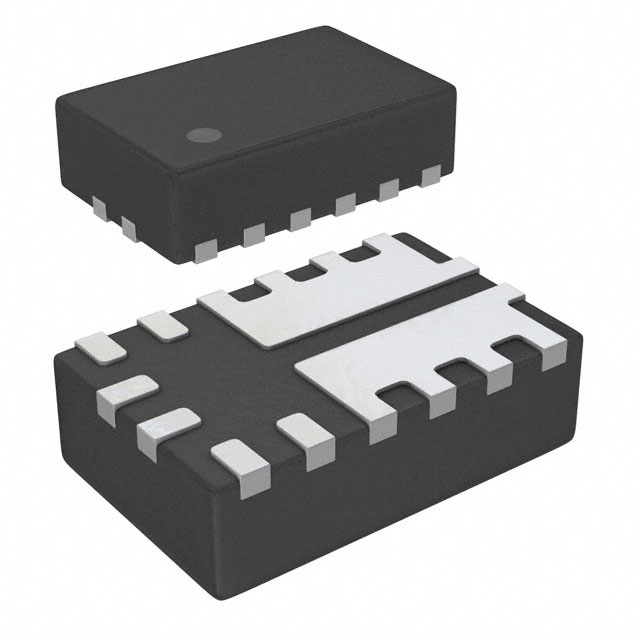

SLG59M1713V

$1.37

Description：A 4 MM 2 A NFET POWER CONTROL
Series：-
Mfr：Renesas Electronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9ae14554387b Category: Power Distribution Switches, Load Drivers Brand: Renesas Electronics Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：A 4 MM 2 A NFET POWER CONTROL
Series：-
Mfr：Renesas Electronics Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：N-Channel
Interface：-
Voltage - Load：-
Voltage - Supply (Vcc/Vdd)：2.5V ~ 5.5V
Current - Output (Max)：2A
Rds On (Typ)：4mOhm
Input Type：CMOS
Features：-
Fault Protection：-
Operating Temperature：-40°C ~ 85°C (TA)
Mounting Type：Surface Mount
Supplier Device Package：16-STQFN (1.6x2.5)
Package / Case：16-PowerUFQFN
Grade：-
Qualification：-

Download product information

SLG59M1713V

Overview

The SLG59M1713V is a single-channel power switch IC featuring an N-channel FET, designed for power distribution applications. It supports a supply voltage range of 2.5 V to 5.5 V and delivers a continuous output current of 2 A. The device incorporates a maximum on-resistance of 4 mΩ and includes integrated inrush current control with a typical rise time of 1 ms. Protection features include fixed current limiting at 8 A and thermal shutdown. Operating within a temperature range of -40°C to +85°C, it utilizes a compact 4 mm² footprint.

Feature Summary

Integrates an N-channel power FET with low on-resistance for efficient power distribution
Includes built-in inrush current control to manage load startup transients
Provides comprehensive protection via fixed current limiting and thermal shutdown mechanisms

Applications

Power management in portable consumer electronics
Battery-powered equipment requiring controlled power sequencing
General-purpose load switching in industrial systems

Procurement Notes

Verify the specific package variant and suffix against official Renesas documentation prior to ordering. Confirm that the selected component matches the required electrical specifications and thermal characteristics for the target application environment. Ensure compliance with RoHS standards and check for any recent product change notices affecting availability or pinout configuration.

Selection Notes

Select this component when a compact solution with integrated inrush control is required for 2 A loads. Consider the 4 mΩ on-resistance for minimizing conduction losses. Evaluate the 8 A current limit threshold against potential fault conditions. Compare with other GreenFET series options if higher current capacity or different packaging is needed.

Part Context

The SLG59M1713V belongs to the Renesas GreenFET family of integrated power switches. This series focuses on providing high-efficiency power distribution with minimal external components. The device simplifies design by combining the driver, protection logic, and power FET into a single small-footprint package suitable for space-constrained designs.
