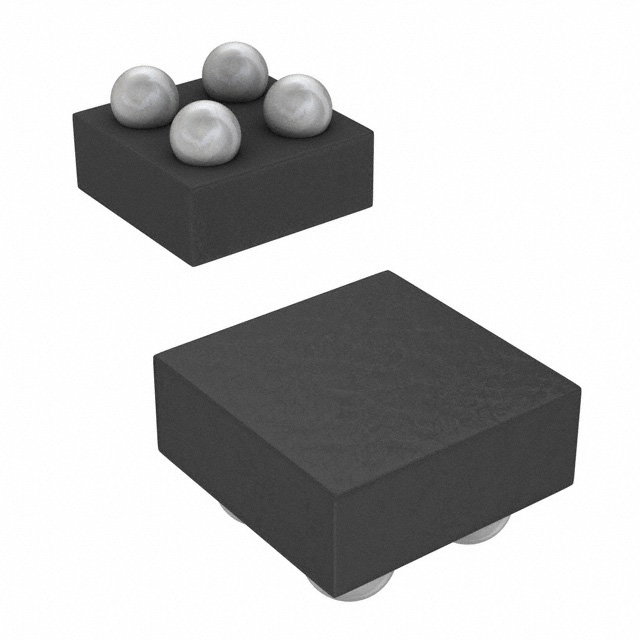

SLG59M1730C
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：A 33 MO, 1 A PFET IPS WITH CONTR
- Series：-
- Mfr：Renesas Electronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Type：General Purpose
- Number of Outputs：1
- Ratio - Input:Output：1:01
- Output Configuration：High Side
- Output Type：P-Channel
- Interface：-
- Voltage - Load：-
- Voltage - Supply (Vcc/Vdd)：2.5V ~ 5.5V
- Current - Output (Max)：1A
- Rds On (Typ)：33mOhm
- Input Type：CMOS
- Features：-
- Fault Protection：-
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：4-WLCSP (0.80x0.80)
- Package / Case：4-XFBGA, WLCSP
- Grade：-
- Qualification：-
Download product information
Overview
The SLG59M1730C is a single-channel integrated power switch IC featuring a P-channel FET with an on-resistance of 33 mΩ and a maximum continuous output current of 1 A. It operates within a supply voltage range of 2.5 V to 5.5 V and includes built-in inrush current control with a maximum run time of 12 ms. The device supports CMOS input logic and functions reliably across an operating temperature range from -40 °C to +85 °C, housed in a compact surface-mount package.
Feature Summary
- Integrates a P-channel power switch with low on-resistance for efficient power distribution
- Includes internal circuitry for controlled inrush current management during startup
- Provides high-side switching capability compatible with standard CMOS control signals
Applications
- Power distribution networks in embedded systems
- Inrush current limiting for peripheral power rails
- High-side load switching in consumer electronics
Procurement Notes
Verify the specific package variant and tape-and-reel quantity requirements directly with the manufacturer or authorized distributors before ordering. Confirm that the component meets all necessary RoHS compliance standards for your target market. Ensure that the design accommodates the specified thermal characteristics and operating temperature limits defined in the official datasheet.
Selection Notes
Select this component when a single-channel high-side switch with integrated inrush control is required for low-current applications up to 1 A. It is suitable for designs needing a compact solution with minimal external components. Consider the 33 mΩ on-resistance for efficiency calculations and ensure the control signal aligns with the specified CMOS input voltage levels.
Part Context
This part belongs to the Renesas SLG59 series of integrated power switches, which are designed for efficient power management in space-constrained applications. The series offers various configurations tailored for different current ratings and protection features, providing designers with standardized solutions for power distribution and load switching tasks.
Replacement Considerations
Consult official cross-reference lists for verified substitutes. Ensure any replacement matches the pinout, voltage ratings, and current capabilities without requiring board redesign.
