SLG59M1804V

Overview

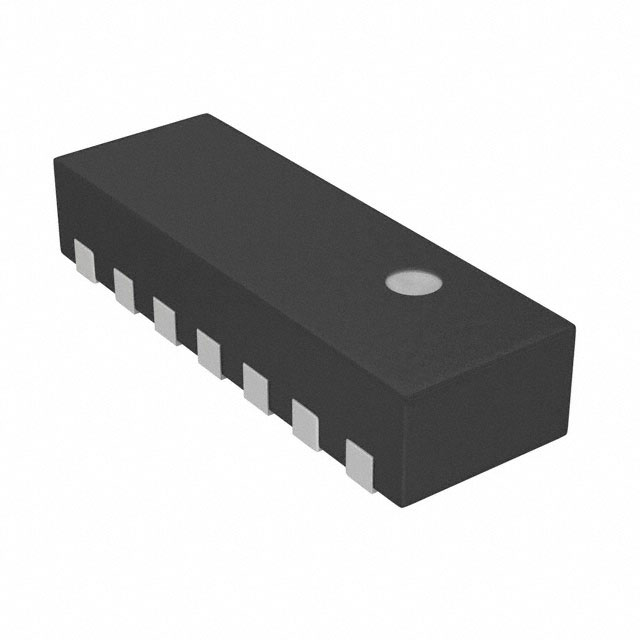

The SLG59M1804V is a dual-channel GreenFET power switch IC designed for high-current power distribution applications. It features two independent N-channel outputs, each capable of delivering up to 4.5A with a typical on-resistance of 14.5 mΩ. The device supports load voltages from 0.9V to 5V and accepts CMOS logic inputs. Integrated protection mechanisms include fixed current limiting and over-temperature shutdown. The component operates within a temperature range of -40°C to 85°C and is housed in a compact 14-STDFN (1x3) surface-mount package.

Feature Summary

• Dual-channel architecture providing independent control of two high-current power rails
• Ultra-low on-resistance minimizes conduction losses and thermal generation
• Integrated fault protection ensures system safety against short circuits and overheating
• Controlled slew rate reduces inrush current during power-up sequences

Applications

• Switching ON and OFF 5.0V and 3.3V power rails with associated support circuitry discharge
• Power management in portable consumer electronics requiring efficient power distribution
• Industrial equipment needing robust protection for multiple voltage domains
• Automotive infotainment systems managing high-current accessory loads

Procurement Notes

Verify the specific ordering suffix to confirm packaging configuration, as variants exist for tape-and-reel quantities. Confirm that the required current rating aligns with the 4.5A per channel specification while respecting the combined maximum current limit. Ensure the PCB footprint matches the 14-STDFN dimensions provided in the official layout guidelines. Cross-reference the datasheet revision date to ensure compatibility with latest design rules.

Selection Notes

Select this component when dual independent high-current switching is required within a single package. The 14.5 mΩ resistance offers superior efficiency compared to standard MOSFET solutions. Consider the integrated discharge capability if rapid rail depletion is necessary. Verify that the input logic levels are compatible with the controlling microcontroller or FPGA. Evaluate the thermal performance under maximum load conditions to determine if additional heatsinking is required.

Part Context

This part belongs to the Renesas GreenFET family, which focuses on low-loss power switching solutions. The SLG59 series integrates passive FET devices with active control logic to simplify design. Compared to discrete MOSFET implementations, this IC reduces board space and component count. It serves as a direct replacement for older dual-load switch architectures in modern compact electronic designs.

Replacement Considerations

Direct pin-to-pin replacements may include other dual-channel load switches from the same manufacturer family with similar current ratings. Verify that substitute parts maintain the same 14.5 mΩ typical resistance and 4.5A continuous current capability. Check for compatibility with the 14-STDFN package dimensions to ensure mechanical fit.
