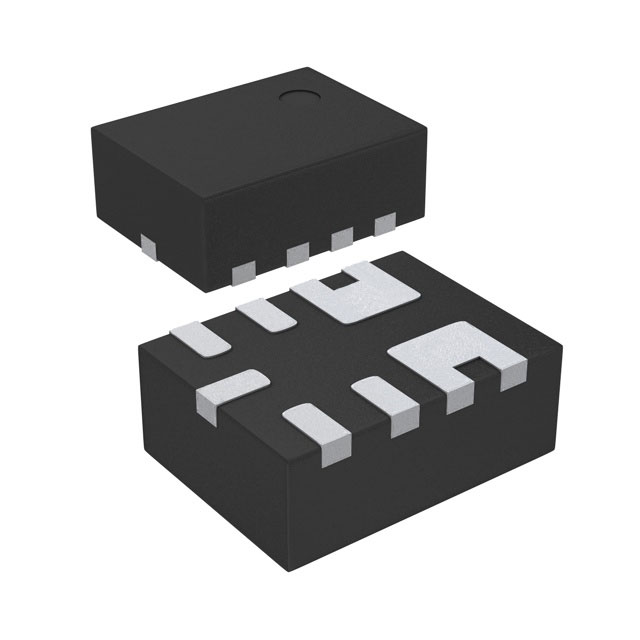

SLG5NT1477V
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC PWR SWITCH N-CHAN 1:1 9TDFN
- Series：-
- Mfr：Renesas Electronics Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Switch Type：General Purpose
- Number of Outputs：1
- Ratio - Input:Output：1:01
- Output Configuration：High Side
- Output Type：N-Channel
- Interface：-
- Voltage - Load：-
- Voltage - Supply (Vcc/Vdd)：3V ~ 5.25V
- Current - Output (Max)：6A
- Rds On (Typ)：7.4mOhm
- Input Type：CMOS
- Features：-
- Fault Protection：-
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Supplier Device Package：9-FC-TDFN (1.5x2)
- Package / Case：9-PowerWFDFN
- Grade：-
- Qualification：-
Download product information
Overview
The SLG5NT1477V is a single N-channel FET pass device designed for power rail switching applications. It operates with a supply voltage range of 3 V to 5.25 V and supports input voltages from 0.85 V to 3.75 V. The component features a typical on-resistance of 9.8 mΩ for Channel 1 and can handle an output current of 6 A. It utilizes active high enable logic and is housed in a TDFN-9 package measuring 1.5 x 2.0 mm with a 0.4 mm pitch.
Feature Summary
- Single N-channel configuration optimized for efficient power distribution
- Active high enable control for straightforward interface integration
- Low on-resistance design to minimize conduction losses
- Compact surface-mount packaging suitable for space-constrained designs
Applications
- Watch power rail switching
- Tablet power rail switching
- Smartphone power rail switching
- Notebook power rail switching
Procurement Notes
Verify the specific suffix 'V' against the manufacturer's official documentation to confirm package dimensions and lead availability. Ensure the selected variant matches the required thermal performance and pinout configuration for the target PCB layout. Cross-reference the part number with the latest Renesas datasheet to validate manufacturing status and any recent labeling updates.
Selection Notes
Select this component when designing systems requiring a single high-current switch with low on-resistance within a compact footprint. The active high enable feature simplifies control logic integration compared to active low alternatives. Consider the 6 A current rating and 9.8 mΩ resistance for efficiency requirements in portable electronics where power conservation and thermal management are critical constraints.
Part Context
This device belongs to the SLG5NT series of load switches manufactured by Renesas Electronics Corporation. The series targets portable consumer electronics, offering solutions for managing power rails in mobile devices. The SLG5NT1477V specifically addresses the need for high current handling in small form factors, supporting the trend toward miniaturization in wearable and handheld technology.
Replacement Considerations
Consult official substitution lists for verified equivalents. Generic replacements may differ in RDS(ON), current ratings, or package dimensions. Verify compatibility with existing control signals and thermal requirements before implementation.
