SLG5NTH1011V

Overview

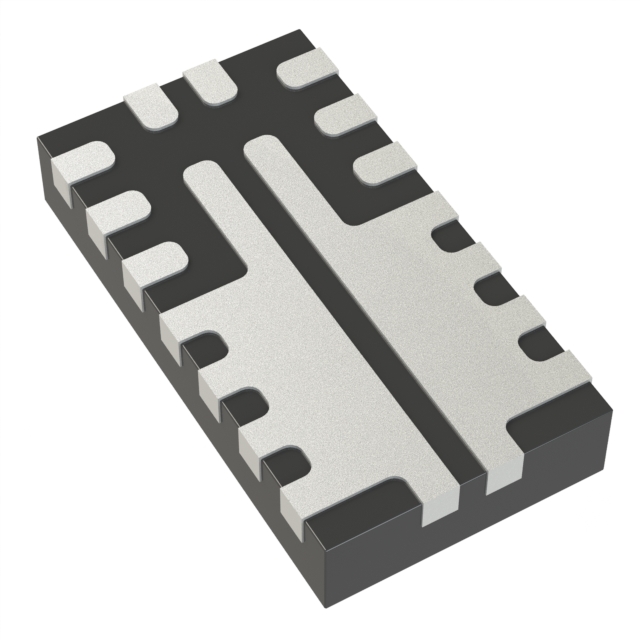

The SLG5NTH1011V is a high-performance NMOS load switch designed for controlling power rails in telecommunications, enterprise computing, and motor drive applications. It features a maximum on-resistance of 13.3 milliohms and supports a continuous current of 5 amperes with a wide operating supply voltage range from 10.8 volts to 26.4 volts. The device includes programmable overvoltage protection, two-stage current limit protection, and an analog current monitor output. It operates within a temperature range of -40 degrees Celsius to +85 degrees Celsius and is housed in a compact STQFN-18 package.

Feature Summary

• Integrates proprietary MOSFET design with copper pillar interconnects for low thermal resistance and stable on-resistance across wide input voltages.
• Provides automatic nFET SOA protection and two-stage current limit protection with adjustable active current limiting.
• Includes programmable overvoltage protection and an analog current monitor output for system diagnostics.
• Features ON-OFF control via an active HIGH enable signal with undervoltage and overtemperature protection.

Applications

• Telecommunications equipment power distribution
• High-performance enterprise computing systems
• Motor drive power control

Procurement Notes

Verify the specific suffix and package variant against the official Renesas datasheet to ensure compatibility with your board layout and thermal requirements. Confirm that the programming interface for overvoltage and current limits matches your system design constraints before finalizing procurement.

Selection Notes

Select this component when designing systems requiring precise power rail management with integrated protection features. Consider its low on-resistance and thermal performance for high-current applications where efficiency and reliability are critical. Ensure the operating voltage range aligns with your 12V or 24V system architecture.

Part Context

The SLG5NTH1011V belongs to Renesas' GreenFET family of power switches, which emphasizes high efficiency and robust protection capabilities. This series is tailored for demanding industrial and automotive environments, offering reliable performance under varying load conditions and temperatures while maintaining a small footprint.
