SLI-343URC3FW is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is LED RED CLEAR T-1 T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for SLI-343URC3FW
- Description：LED RED CLEAR T-1 T/H
- Series：SLI-343
- Mfr：Rohm Semiconductor
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red
- Configuration：Standard
- Lens Color：Red
- Lens Transparency：Clear
- Millicandela Rating：200mcd
- Lens Style：Round with Domed Top
- Lens Size：3.10mm Dia
- Voltage - Forward (Vf) (Typ)：1.9V
- Current - Test：20mA
- Viewing Angle：40°
- Mounting Type：Through Hole
- Wavelength - Dominant：-
- Wavelength - Peak：630nm
- Features：-
- Package / Case：Radial
- Supplier Device Package：T-1
- Size / Dimension：-
- Height (Max)：5.60mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for SLI-343URC3FW
LED Indication - Discrete Overview

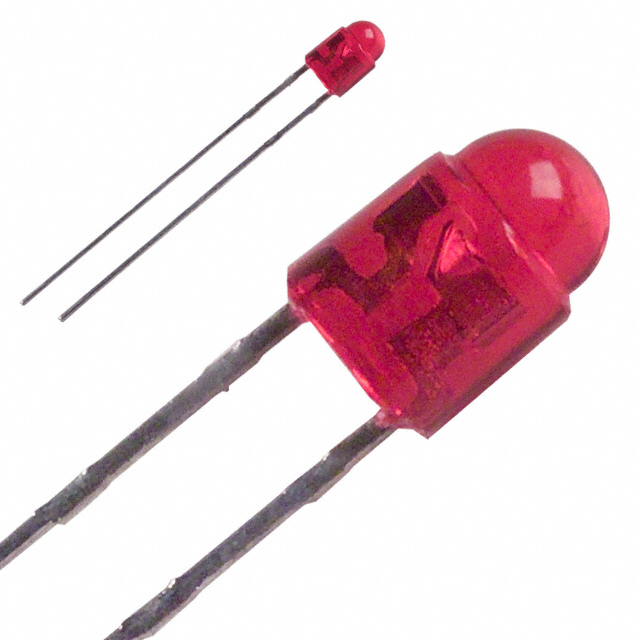

The SLI-343URC3FW is a red light-emitting diode from the SLI-343 series, manufactured by ROHM Semiconductor. It features a T-1 (3.10 mm diameter) radial through-hole package with a clear dome lens. The device emits at a peak wavelength of 630 nm and provides a luminous intensity of 200 mcd. Electrical characteristics include a typical forward voltage of 1.9 V at a test current of 20 mA. It operates within a temperature range of -55°C to +85°C and complies with RoHS3 standards.
LED Indication - Discrete Feature Summary
- Radial through-hole mounting configuration in a T-1 package
- Clear lens design for focused light emission
- Standard single LED configuration
LED Indication - Discrete Applications
- Panel indicator lights
- Power supply status indicators
- Control panel signaling
LED Indication - Discrete Procurement Notes
Verify component authenticity against official ROHM Semiconductor documentation. Confirm that the specific ordering suffix matches the required lens transparency and electrical parameters. Ensure compliance with project-specific environmental regulations such as RoHS3 requirements before finalizing procurement orders.
LED Indication - Discrete Selection Notes
Select this component when a standard red indicator with a clear lens is required. The T-1 form factor suits applications needing a compact footprint. Consider the 200 mcd intensity and 1.9 V forward voltage for circuit design compatibility. Verify availability status as distribution data may vary over time.
LED Indication - Discrete Part Context
This part belongs to the SLI-343 series of single-color LEDs produced by ROHM Semiconductor. The series offers various color options and lens treatments. The SLI-343URC3FW specifically denotes the red variant with a clear lens finish, distinguishing it from diffused or colored lens alternatives within the same product family.
LED Indication - Discrete Replacement Considerations
SLI-343URC3F serves as a substitute option if a diffused lens is acceptable instead of the clear lens specified in this model.
