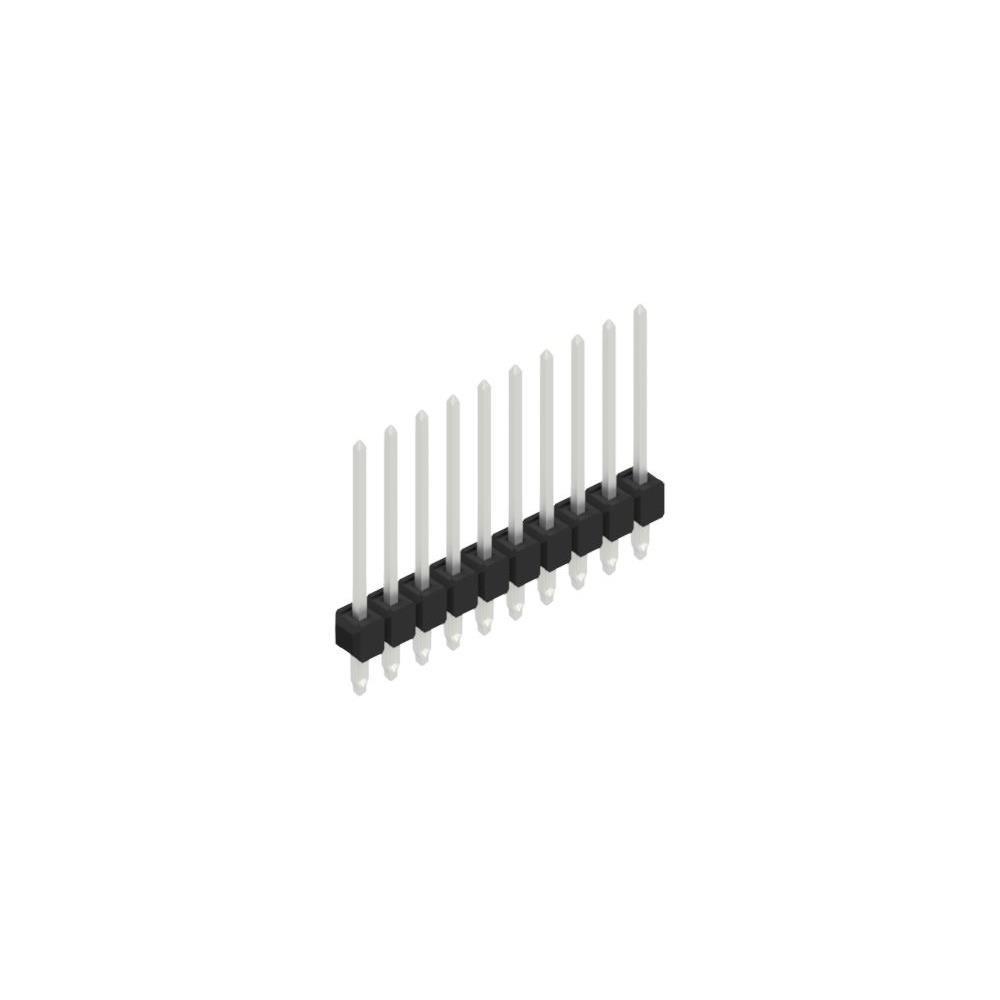

SLP 1 16 195 10 Z

SLP 1 16 195 10 Z is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is One row, 1-36 contacts, for PCB. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SLP 1 16 195 10 Z

• Description：One row, 1-36 contacts, for PCB
• Series：SLP 1 16 195
• Mfr：Fischer Elektronik
• Package：Bulk
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：10
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Press-Fit
• Fastening Type：Push-Pull
• Contact Length - Mating：0.520" (13.21mm)
• Contact Length - Post：0.138" (3.50mm)
• Overall Contact Length：0.768" (19.50mm)
• Insulation Height：0.110" (2.80mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：7.87µin (0.200µm)
• Contact Finish - Post：Gold
• Contact Material：Copper Tin
• Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
• Features：-
• Operating Temperature：-40°C ~ 163°C
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：3A
• Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SLP 1 16 195 10 Z
