SLP-1650+

Overview

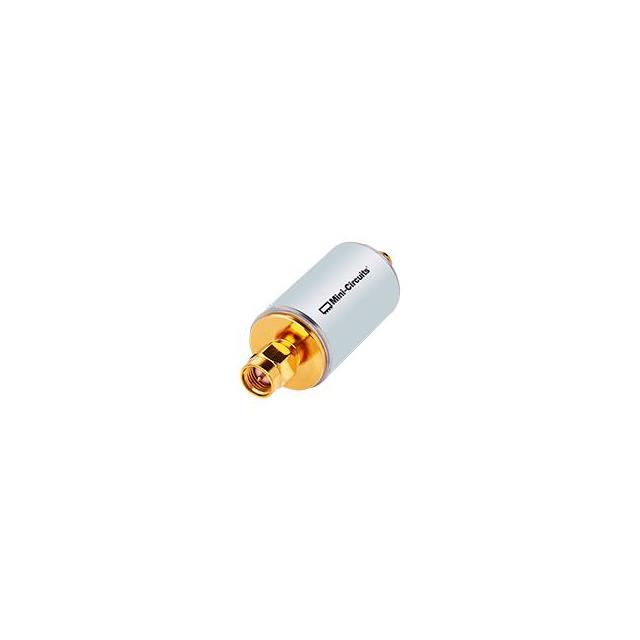

The Mini-Circuits SLP-1650+ is a coaxial low-pass filter designed for RF applications. It features an SMA connector interface and operates with a 50Ω impedance system. The component provides a cutoff frequency of 1.65 GHz, ensuring effective signal filtering within this range. Electrical specifications are based on established test performance data from the manufacturer.

Feature Summary

• Rugged shielded case construction
• Good attenuation rate with a 1.35 typical 20dB/3dB bandwidth ratio

Applications

• RF signal processing systems
• Communication equipment requiring low-pass filtering
• Test and measurement instrumentation

Procurement Notes

Verify the exact part number suffix against official Mini-Circuits documentation to ensure correct specifications. Confirm connector type and impedance requirements match your system design before ordering. Check lead times as they may vary significantly depending on current production schedules.

Selection Notes

Select this component when a 1.65 GHz cutoff frequency is required for low-pass filtering in a 50Ω environment. Ensure compatibility with SMA connectors and consider the rugged shielded case for durability in demanding RF applications.

Part Context

This component belongs to the SLP series of coaxial low-pass filters from Mini-Circuits. The series offers various cut-off frequencies to suit different RF needs. The SLP-1650+ specifically targets applications requiring filtering above 1.65 GHz.

Replacement Considerations

Other SLP models are available with wide selection of cut-off frequencies. Verify electrical specifications and physical dimensions before substituting.
