SLP-30+

Overview

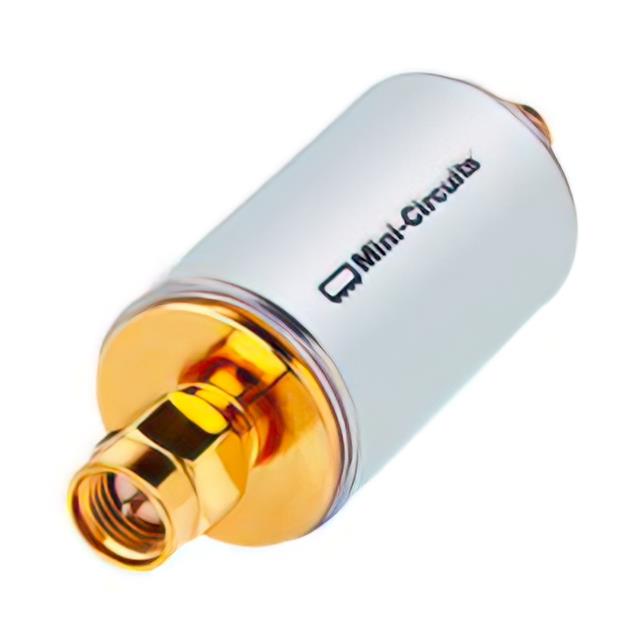

The SLP-30+ is a lumped LC low-pass filter manufactured by Mini-Circuits, designed for signal conditioning applications. It operates with a frequency range from DC to 32 MHz and features a standard 50-ohm impedance. The component utilizes an inline SMA connector interface and is housed in the FF99 case style. It provides specific rejection characteristics, including 20 dB attenuation at frequencies between 47-61 MHz, and maintains a Voltage Standing Wave Ratio (VSWR) of 1.7:1.

Feature Summary

• Utilizes lumped LC technology for effective low-pass filtering within the specified bandwidth.
• Provides precise impedance matching through a standard 50-ohm design.
• Features robust SMA connectors for reliable inline signal transmission.

Applications

• RF signal conditioning circuits
• Low-frequency interference suppression
• Test and measurement equipment

Procurement Notes

Verify the exact part number suffix against official Mini-Circuits documentation to ensure correct specifications. Confirm that the required frequency range and impedance match your system requirements before ordering. Check for any environmental ratings or specific packaging details if applicable to your production needs.

Selection Notes

Select this component when a low-pass filter with a cutoff near 32 MHz is required. Ensure compatibility with SMA interfaces and 50-ohm systems. Consider the physical dimensions of the FF99 package for board layout constraints.

Part Context

This component belongs to Mini-Circuits' passive RF device portfolio, specifically within their signal conditioning line. It is categorized as a low-pass filter, distinct from high-pass or band-pass variants offered by the manufacturer.

Replacement Considerations

Consult official Mini-Circuits substitution guides for verified alternatives. Generic substitutes may not match the specific lumped LC performance characteristics or connector types.
