SLP-50+

Overview

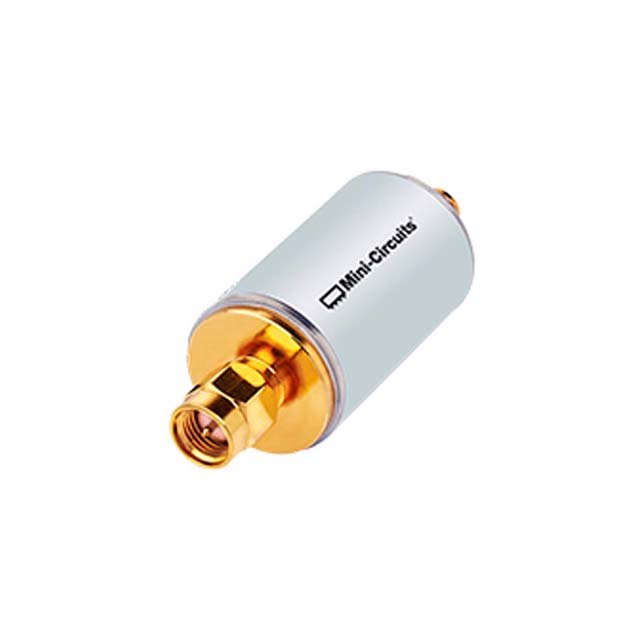

The SLP-50+ is a coaxial low-pass RF filter manufactured by Mini-Circuits, designed for signal integrity in radio frequency applications. It operates with a cutoff frequency of 48 MHz and maintains a standard 50 Ω impedance across its DC to 48 MHz passband. The component utilizes lumped LC technology housed in a shielded stainless steel case, ensuring robust performance against external interference. Key electrical characteristics include a maximum input power of 0.5 W and a typical VSWR of 1.7:1. It provides significant rejection, achieving 20 dB attenuation at frequencies between 70 and 90 MHz. The device features SMA connectors for reliable in-line integration.

Feature Summary

• Shielded stainless steel construction for environmental protection and signal isolation
• Lumped LC design optimized for wideband 50 Ω operation
• SMA connector interface for standardized in-line module integration

Applications

• RF transmitter and receiver circuit filtering
• Harmonic suppression in wireless communication systems
• Signal conditioning in industrial measurement equipment

Procurement Notes

Verify the specific ordering suffix when sourcing the SLP-50+. Confirm that the required connector type matches the SMA specification documented in the official datasheet. Ensure the application environment remains within the stated 0.5 W maximum input power limit to maintain component reliability and prevent damage. Cross-reference the part number with the manufacturer's current documentation to confirm availability and exact technical specifications.

Selection Notes

Select the SLP-50+ for applications requiring effective low-frequency signal passage while attenuating higher frequencies above 48 MHz. Its compact coaxial form factor suits space-constrained designs. The 50 Ω impedance ensures compatibility with standard RF test equipment and transmission lines. Consider the 0.5 W power handling capability when designing circuits with moderate signal levels. The shielded case makes it suitable for environments where electromagnetic interference mitigation is necessary.

Part Context

Mini-Circuits produces a broad portfolio of RF and microwave components, including filters, amplifiers, and mixers. The SLP-50+ belongs to their standard line of passive RF devices, specifically low-pass filters. These components are engineered for high performance across various industries, supporting functions such as impedance matching and signal filtering. The product line emphasizes compact size and stable performance for commercial and industrial projects.

Replacement Considerations

Consult Mini-Circuits documentation for direct substitutes. Verify that any alternative component matches the 48 MHz cutoff frequency, 50 Ω impedance, and SMA connector interface. Ensure the replacement offers comparable rejection characteristics and power handling capabilities.
