SLPPI05-10-1R0M

Fixed Inductors Overview

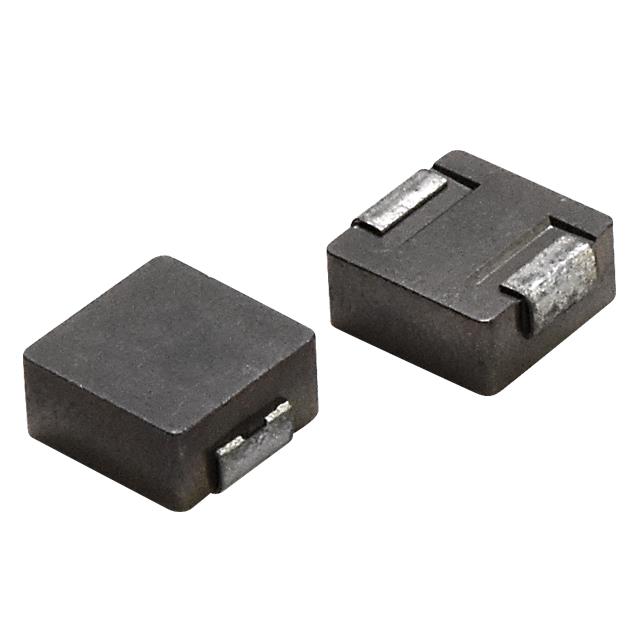

The Signal Transformer SLPPI05-10-1R0M is a surface-mount power inductor with an inductance of 1.0 µH and a tolerance of ±20%. It features a saturation current (Isat) of 9.4 A and a rated current of 6 A. The DC resistance (DCR) is 42.8 mΩ maximum. This shielded molded component operates within a temperature range of -55°C to 125°C.

Fixed Inductors Feature Summary

• Shielded molded construction for high-power applications
• High saturation current capability of 9.4 A
• Low-profile surface-mount design

Fixed Inductors Applications

• Notebooks
• Laptops
• Gaming devices

Fixed Inductors Procurement Notes

Verify the specific manufacturer designation, as Signal Transformer products are often associated with Bel Fuse. Confirm the exact part number suffixes such as '-TR' for tape-and-reel packaging against official distributor catalogs. Ensure compatibility with automated pick-and-place equipment due to the surface-mount package type.

Fixed Inductors Selection Notes

Select this component when designing circuits requiring high current handling in compact form factors. The 1.0 µH value suits high-frequency switching applications. Consider the 42.8 mΩ DCR for efficiency calculations and thermal management requirements in portable electronic devices.

Fixed Inductors Part Context

This inductor belongs to the SLPPI05/SLPPI06 series, representing a family of low-profile high-power inductors introduced by Signal Transformer. These components are engineered for modern electronics where space constraints and power density are critical design parameters.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference data through official manufacturer channels before substitution.
