SLR-332MCT32

LED Indication - Discrete Overview

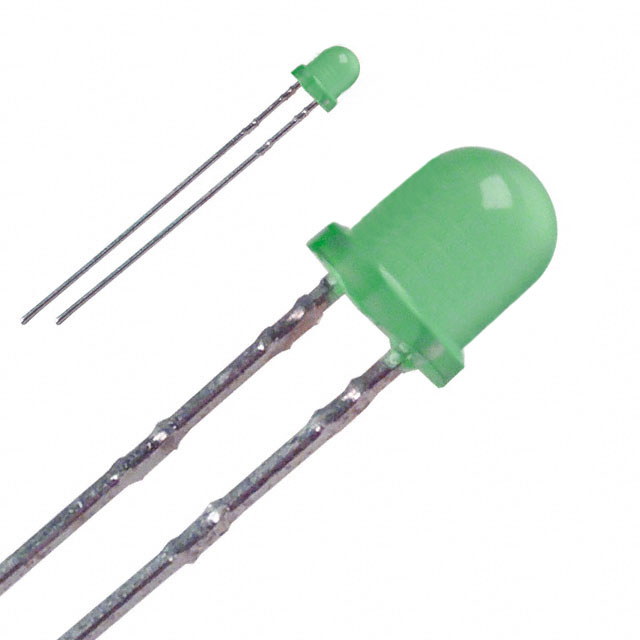

The SLR-332MCT32 is a single-color green LED from ROHM Semiconductor, designed for through-hole radial mounting. It features a 3.2 mm dome-shaped lens with clear transparency and emits light at a peak wavelength of 563 nm. The component operates with a forward current of 10 mA and a typical forward voltage of 2.1 V, rated at 75 mW power dissipation. It provides a luminous intensity of 16 mcd with an 85-degree viewing angle. Physical dimensions include a height of 4.3 mm, length of 4 mm, and width of 4 mm. It supports an operating temperature range from -25 °C to +85 °C.

LED Indication - Discrete Feature Summary

• Through-hole radial mount configuration for standard PCB assembly
• Dome-shaped lens design providing an 85-degree viewing angle
• Clear lens transparency for direct light emission

LED Indication - Discrete Applications

• General-purpose indicator lighting in electronic equipment
• Panel status indication for control interfaces
• Signal display in consumer electronics devices

LED Indication - Discrete Procurement Notes

Verify the specific suffix 'T32' against official ROHM documentation to confirm reel or cut tape packaging requirements. Ensure the requested quantity aligns with standard factory pack sizes. Confirm RoHS compliance status and lead times directly with authorized distributors prior to ordering.

LED Indication - Discrete Selection Notes

Select this component when a green indicator with high visibility is required. The 85-degree viewing angle suits applications needing broad light dispersion. Verify that the 10 mA forward current and 2.1 V drop are compatible with the driving circuit's voltage levels and current sourcing capabilities.

LED Indication - Discrete Part Context

This part belongs to the SLR-332MC series of single-color LEDs manufactured by ROHM Semiconductor. The series offers various color options and lens transparencies within a standardized T-1 (3.2 mm) package form factor, ensuring mechanical compatibility across different indicator designs.

LED Indication - Discrete Replacement Considerations

Publicly confirmed substitute part numbers for this specific model were not found in the provided source material. Consult official ROHM documentation or distributor cross-reference lists for verified alternatives.
