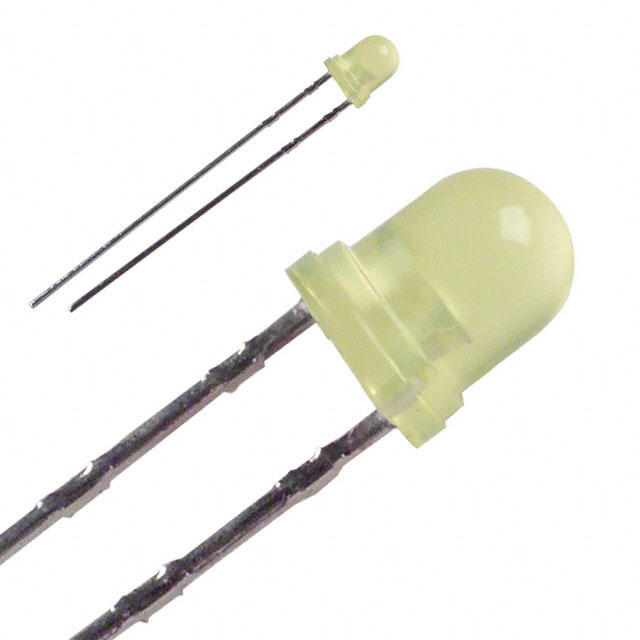

SLR-332YC3F

$0.42

Description：LED YELLOW CLEAR T-1 T/H
Series：SLR-332
Mfr：Rohm Semiconductor
Package：Bulk

SKU:78340a5bb92f Category: LED Indication - Discrete Brand: Rohm Semiconductor

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SLR-332YC3F is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Rohm Semiconductor. Its product description is LED YELLOW CLEAR T-1 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SLR-332YC3F

Description：LED YELLOW CLEAR T-1 T/H
Series：SLR-332
Mfr：Rohm Semiconductor
Package：Bulk
Color：Yellow
Configuration：Standard
Lens Color：Yellow
Lens Transparency：Clear
Millicandela Rating：10mcd
Lens Style：Round with Domed Top
Lens Size：3.20mm Dia
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：10mA
Viewing Angle：85°
Mounting Type：Through Hole
Wavelength - Dominant：587nm
Wavelength - Peak：-
Features：-
Package / Case：Radial
Supplier Device Package：T-1
Size / Dimension：-
Height (Max)：4.60mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SLR-332YC3F

SLR-332YC3F

LED Indication - Discrete Overview

The SLR-332YC3F is a single-color yellow LED manufactured by ROHM Semiconductor, designed for through-hole mounting. It features a 3.1 mm lens size with a flat disc shape and clear transparency. The component emits light at a dominant wavelength of 585 nm with an intensity of 10 mcd. Electrical characteristics include a forward voltage of 2.1 V and a forward current rating of 10 mA, resulting in a power dissipation of 60 mW. The device operates within a temperature range of -25°C to +85°C.

LED Indication - Discrete Feature Summary

Through-hole radial package construction for standard PCB insertion
Clear lens transparency providing direct visibility of the emitting element
Yellow emission color optimized for indicator applications

LED Indication - Discrete Applications

Panel status indicators
Equipment power state signaling
Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific suffix configuration against the official datasheet to ensure compatibility with required lens transparency and emission color specifications. Confirm RoHS compliance status and check for any recent product change notices that may affect availability or material composition prior to finalizing procurement orders.

LED Indication - Discrete Selection Notes

Select this component when a standard yellow indicator with clear lens visibility is required. Ensure the circuit design accommodates the 2.1 V forward voltage drop and limits current to 10 mA to maintain the 60 mW power rating. Verify that the operating environment stays within the specified -25°C to +85°C temperature range for reliable performance.

LED Indication - Discrete Part Context

This part belongs to the SLR series of single-color LEDs from ROHM Semiconductor. The series includes various colors and lens configurations tailored for general-purpose indication. The SLR-332YC3F specifically utilizes a 3.1 mm form factor, distinguishing it from other sizes in the lineup while maintaining consistent electrical interface standards for through-hole integration.
