SLR-342DUTE7

LED Indication - Discrete Overview

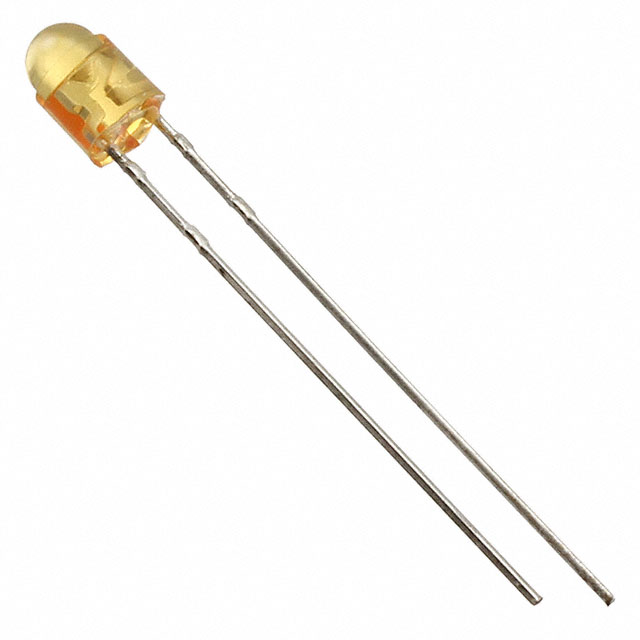

The SLR-342DUTE7 is a through-hole orange LED from the ROHM Semiconductor SLR-342 series. It features a 3.1 mm round lens with a domed top and diffused transparency. The component operates at a forward current of 10 mA with a typical forward voltage of 2 V. It delivers a light intensity of 16 mcd and has a power rating of 60 mW. The device is RoHS compliant and designed for standard indicator applications.

LED Indication - Discrete Feature Summary

• Through-hole mounting configuration for standard PCB assembly
• Diffused orange lens providing uniform light distribution
• Standard 3.1 mm circular form factor with domed top

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power state signaling
• Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific suffix against the official ROHM datasheet to confirm optical and electrical characteristics. Ensure the procurement channel provides valid RoHS compliance documentation. Confirm availability as this component may be subject to lifecycle restrictions or discontinuation notices. Cross-reference the manufacturer part number to avoid substitution errors during sourcing.

LED Indication - Discrete Selection Notes

Select this component when a standard 3.1 mm through-hole orange indicator is required. Consider the 16 mcd intensity and 2 V forward voltage drop for circuit design compatibility. Verify that the diffused lens type meets the visibility requirements of the application environment compared to clear lens alternatives in the same series.

LED Indication - Discrete Part Context

This part belongs to the SLR-342 series, which comprises standard single-color LEDs manufactured by ROHM Semiconductor. The series offers various lens colors and transparency options within a consistent 3.1 mm package footprint. These components are widely used in general-purpose electronic equipment for visual indication purposes.

LED Indication - Discrete Replacement Considerations

Consult the official ROHM replacement guide for direct equivalents. Verify pinout compatibility and luminous intensity specifications before substituting with other manufacturers' parts. Ensure any alternative maintains the same through-hole package dimensions and thermal characteristics.
