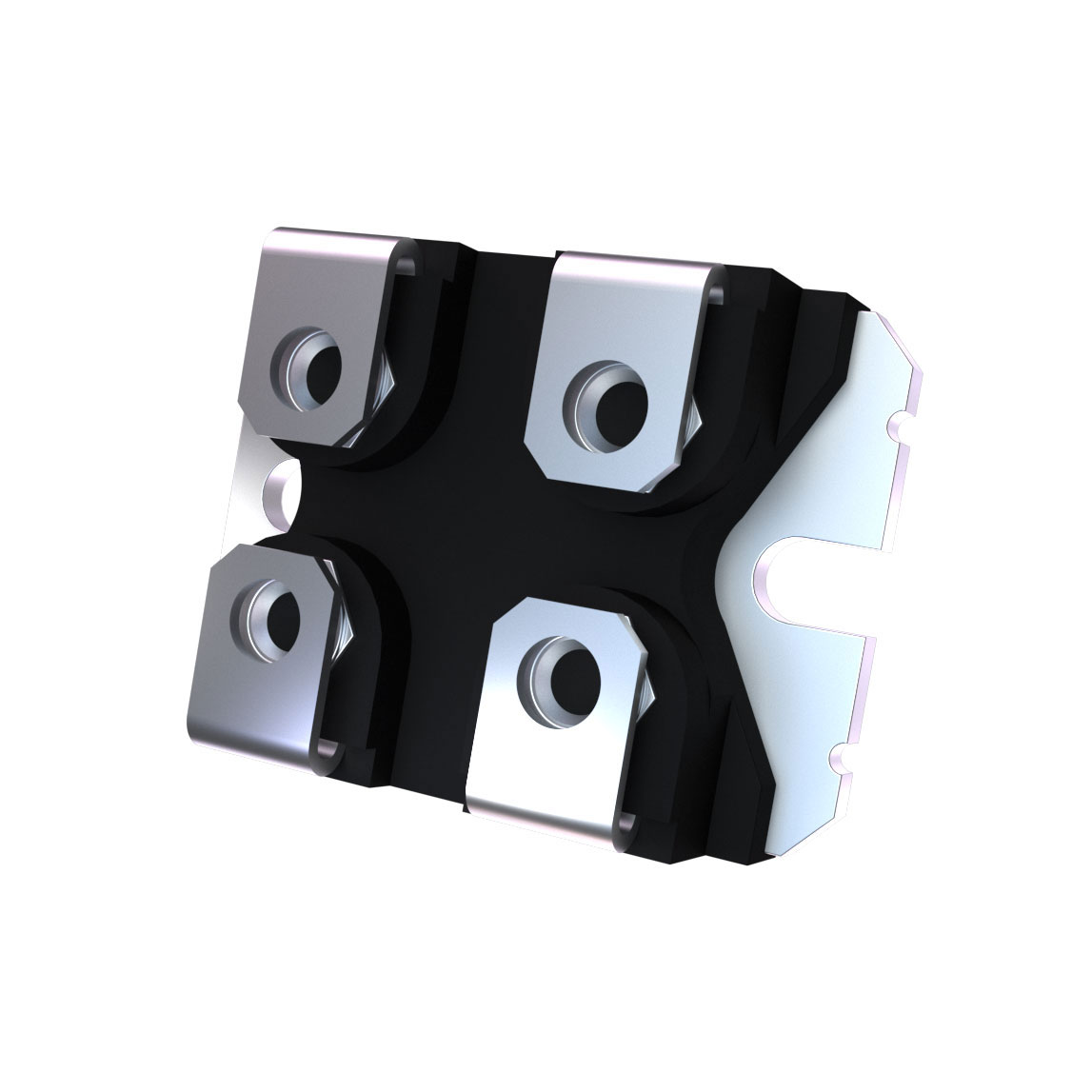

SLS065J100A-ISATH

$21.07

Description：DIODE MOD SIC 650V 164A SOT-227
Series：-

SKU:5550ca6e63fc Category: Diode Arrays Brand: Luminus Devices Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SLS065J100A-ISATH is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Luminus Devices Inc.. Its product description is DIODE MOD SIC 650V 164A SOT-227. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for SLS065J100A-ISATH

Description：DIODE MOD SIC 650V 164A SOT-227
Series：-
Mfr：Luminus Devices Inc.
Package：Tube
Diode Configuration：2 Independent
Technology：SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max)：650 V
Current - Average Rectified (Io) (per Diode)：164A
Voltage - Forward (Vf) (Max) @ If：1.7 V @ 100 A
Speed：No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr)：0 ns
Current - Reverse Leakage @ Vr：200 µA @ 650 V
Operating Temperature - Junction：-40°C ~ 175°C
Mounting Type：Chassis Mount
Package / Case：SOT-227-4, miniBLOC
Supplier Device Package：SOT-227
Grade：-
Qualification：-

Diode Arrays datasheet and documents for SLS065J100A-ISATH

SLS065J100A-ISATH

Diode Arrays Overview

The SLS065J100A-ISATH is a third-generation silicon carbide Schottky barrier diode module manufactured by Hunan Sanan Semiconductor Co., Ltd. It features a 650V repetitive peak reverse voltage and a continuous forward current of 103A at 110°C case temperature. The device utilizes an SOT-227 package with ceramic insulation providing 2.5kV isolation. Key electrical parameters include a typical forward voltage of 1.45V at 100A and 25°C, and a total capacitive charge of 275nC at 400V reverse bias.

Diode Arrays Feature Summary

Zero reverse recovery current due to Schottky construction
Ceramic package provides 2.5kV isolation
Positive temperature coefficient for parallel operation
Temperature-independent switching performance

Diode Arrays Applications

Solar inverters
Uninterruptible Power Supply (UPS)
Switched-mode power supplies
Welding equipment
High speed rectifier circuits

Diode Arrays Procurement Notes

Verify the manufacturer origin as Hunan Sanan Semiconductor Co., Ltd. rather than Luminus Devices Inc. Confirm the specific ordering suffix ISATH corresponds to the tube packing type with a unit quantity of 100EA. Ensure the SOT-227 package dimensions and mounting torque requirements are compatible with the target thermal management design.

Diode Arrays Selection Notes

Select this component for high-frequency applications requiring low switching loss and minimal heat dissipation. The positive temperature coefficient facilitates safe parallel operation without active current balancing. Verify that the system operates within the specified junction temperature range of -40°C to 175°C and adheres to the maximum ratings for surge currents and power dissipation.

Diode Arrays Part Context

This part belongs to the SLS065J100A series of third-generation SiC Schottky Barrier Diodes. It is designed to replace silicon-based solutions in industrial applications, offering higher efficiency and operation temperatures. The module integrates advanced SiC technology to achieve system miniaturization and lightweight design while maintaining RoHS compliance.
