SLV N 11 055 16 G

Headers, Male Pins Overview

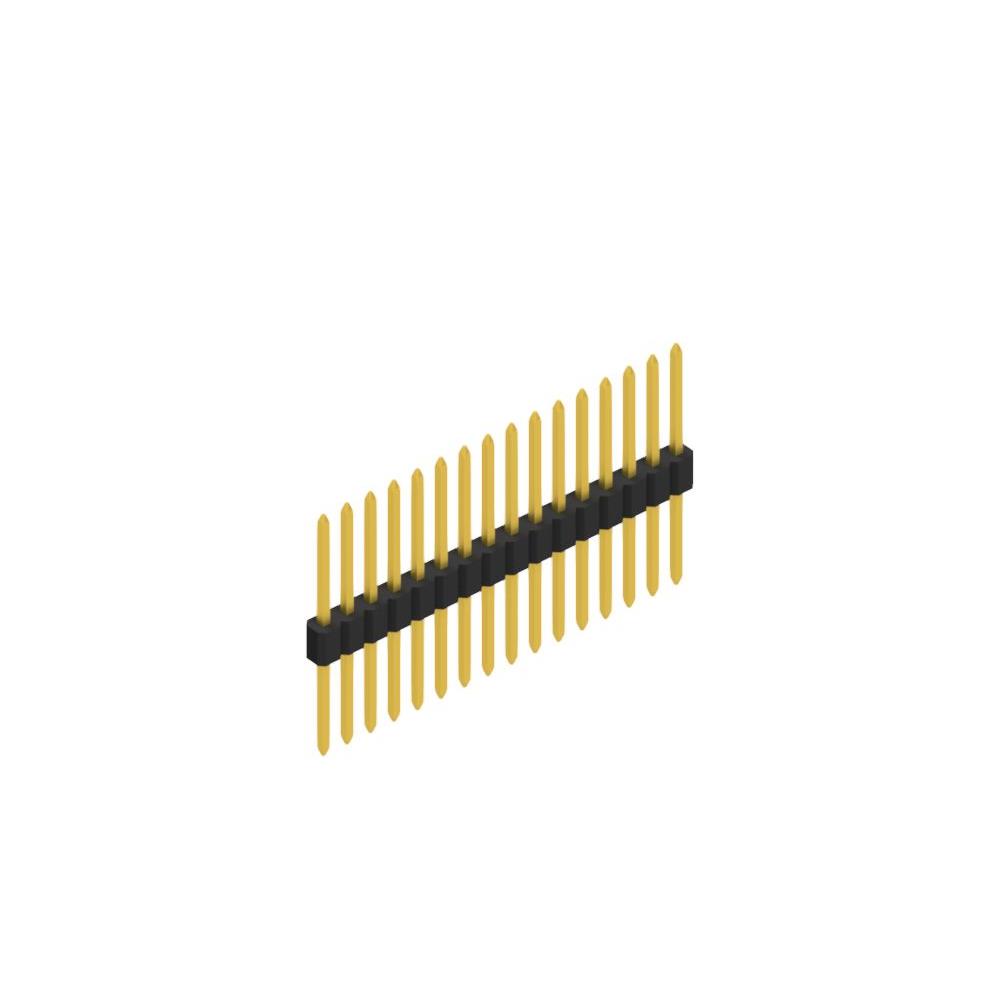

The SLV N 11 055 16 G is a male pin header manufactured by Fischer Elektronik. It features a single row with 16 positions and a pitch of 1.27 mm (0.050 inches). The connector utilizes a straight, narrow insulator design suitable for female headers in the BLM series. Contact material is CuZn alloy with tin plating. It is designed for through-hole PCB mounting.

Headers, Male Pins Feature Summary

• Straight, narrow insulator design compatible with BLM female headers
• Single row configuration with 16 contacts
• Through-hole mounting style

Headers, Male Pins Applications

• General electronic interconnects
• PCB-to-PCB connections
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure the selected variant matches the required 1.27 mm pitch and 16-position count for compatibility with mating BLM series connectors.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for dense PCB layouts. The narrow insulator width facilitates tight spacing arrangements. Confirm that the operating environment does not exceed the thermal ratings of the PA46 insulation and tin-plated contacts.

Headers, Male Pins Part Context

This part belongs to the SLV N series of male pin headers from Fischer Elektronik. The series offers various contact counts and pitches, with the SLV N 11 055 16 G specifically providing a 1.27 mm pitch option. It is part of a broader ecosystem including mating BLM female headers.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 1.27 mm pitch, 16-position count, and through-hole mounting type. Verify mechanical dimensions and contact material compatibility before replacing.
