SLV W 1 036 10 G

Headers, Male Pins Overview

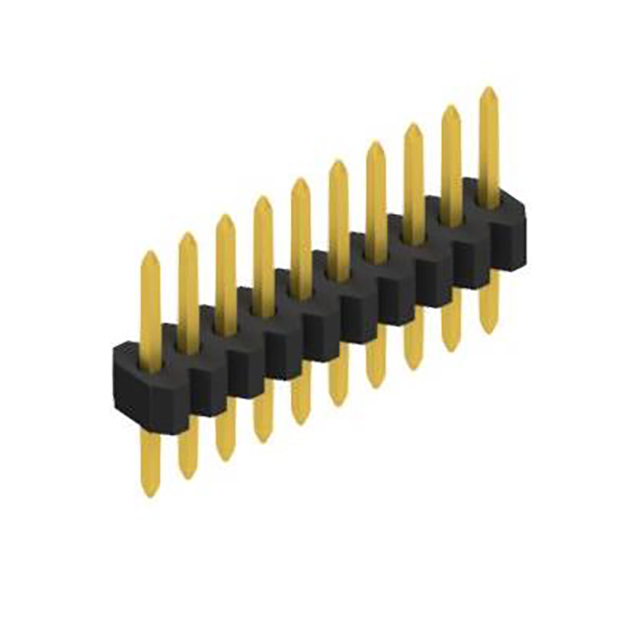

The SLV W 1 036 10 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 1.27 mm pitch and provides 10 contacts designed for through-hole mounting. The connector utilizes copper alloy contacts with gold plating over nickel, ensuring reliable electrical performance. It is rated for 1.5 A current and supports voltages up to 125 V AC or 300 V DC. The housing is constructed from PA 4.6 material, offering thermal stability within an operating range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row configuration with 1.27 mm spacing for compact board-to-board or wire-to-board connections
• Gold-plated contacts over nickel base for enhanced corrosion resistance and low contact resistance
• Thermally stable PA 4.6 insulation supporting high-temperature soldering processes

Headers, Male Pins Applications

• Board-to-board interconnections in dense electronic assemblies
• Wire-to-board connections requiring secure through-hole termination
• Industrial control modules operating within extended temperature ranges

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Fischer Elektronik documentation to confirm contact surface treatment and plating thickness. Ensure the selected variant matches the required current rating and voltage specifications for the target application environment. Cross-reference the datasheet for precise mechanical dimensions to validate PCB footprint compatibility before procurement.

Headers, Male Pins Selection Notes

Select this component when a 1.27 mm pitch male header is required for applications demanding high reliability and thermal endurance. The gold-over-nickel contact finish is suitable for environments where corrosion resistance is critical. Confirm that the 1.5 A current rating and 300 V insulation voltage align with the system's electrical requirements and safety standards.

Headers, Male Pins Part Context

This part belongs to the SLV series of male headers from Fischer Elektronik, designed specifically for mating with female headers such as the BLM series. The series emphasizes robust construction and precise alignment for repetitive connection cycles. The SLV W 1 036 10 G represents a standard 10-position variant within this family, optimized for general-purpose high-reliability interconnects.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical compatibility and electrical ratings if considering alternative manufacturers. Ensure any replacement maintains the 1.27 mm pitch and through-hole mounting style to fit existing PCB layouts.
