SLV W 1 130 27 Z

Headers, Male Pins Overview

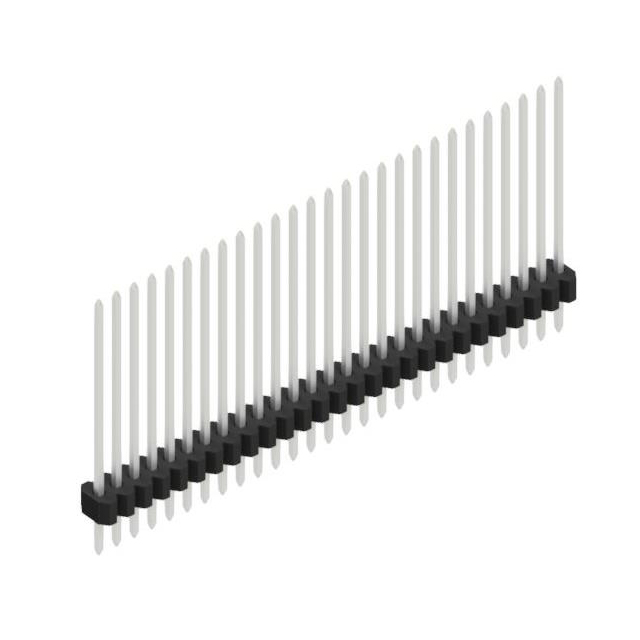

The SLV W 1 130 27 Z is a male pin header connector from the Fischer Elektronik SLV W series. It features a single row with 27 positions and a 1.27 mm (0.050 inch) pitch. Designed for through-hole mounting, it utilizes a CuZn-alloy contact material with tin plating. The component supports a current rating of 1.5 A and voltage ratings of 125 V AC and 300 V DC. Contact resistance is specified at ≤5 mΩ. The housing is constructed from PA 4.6 material.

Headers, Male Pins Feature Summary

• Single-row through-hole male header configuration
• Tin-plated copper alloy contacts for reliable conductivity
• PA 4.6 insulating housing for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• Mating with female headers in the BLM series

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required 27-position count and 1.27 mm pitch. Confirm RoHS compliance status if mandated by project specifications. Ensure the through-hole footprint aligns with the PCB design guidelines for the SLV W series to guarantee proper mechanical retention and electrical performance during assembly.

Headers, Male Pins Selection Notes

Select this component when a single-row, high-density connection is required for low-power signal or power lines. The 1.27 mm pitch allows for compact board layouts. Consider the 1.5 A current rating against the total load requirements. Verify compatibility with mating female connectors, specifically those within the BLM series, to ensure correct interface engagement.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SLV W series of PCB connectors. The series is characterized by its use of tin-plated contacts and PA 4.6 housings, designed for robust through-hole applications. The SLV W 1 130 27 Z represents a specific variant within this family, defined by its 27-contact count and single-row layout, suitable for general electronic assembly needs.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. When sourcing alternatives, prioritize connectors with identical 1.27 mm pitch, 27 positions, and through-hole mounting style to maintain mechanical and electrical compatibility.
