SLV W 11 055 9 Z

Headers, Male Pins Overview

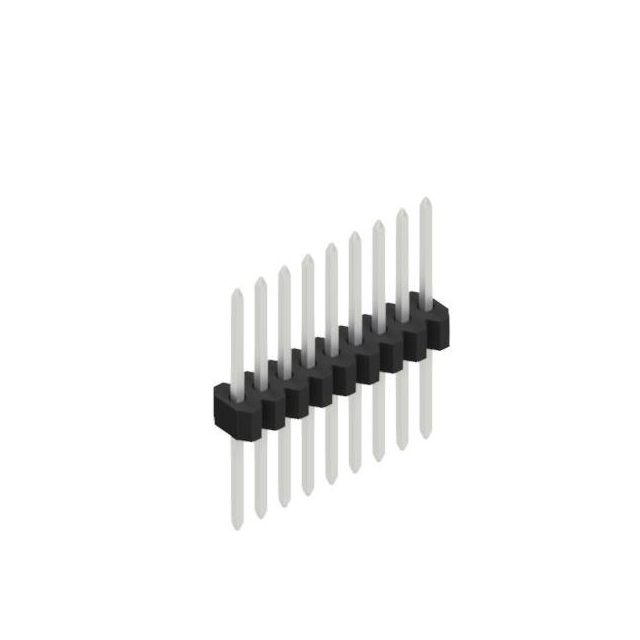

The SLV W 11 055 9 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.050 inch (1.27 mm) pitch and contains 9 positions. Designed for through-hole mounting, the connector utilizes tin-plated contacts made from copper-zinc alloy. The insulator is constructed from PA 4.6 material, providing structural integrity for board-to-board or wire-to-board applications.

Headers, Male Pins Feature Summary

• Single row configuration with narrow insulator design
• Through-hole mounting for secure PCB attachment
• Tin-plated contacts for reliable conductivity

Headers, Male Pins Applications

• Board-to-board interconnection
• Wire-to-board connectivity
• Industrial electronic manufacturing assemblies

Headers, Male Pins Procurement Notes

Verify the exact part number against official Fischer Elektronik documentation to confirm contact count and pitch specifications. Ensure compatibility with mating female headers such as the BLM series. Check datasheet details for insulation material ratings and current capacity requirements before integration into final designs.

Headers, Male Pins Selection Notes

Select this component when a 1.27 mm pitch male header is required for through-hole assembly. Consider the narrow insulator profile for space-constrained layouts. Verify that the tin plating thickness meets corrosion resistance needs for the operating environment. Confirm mechanical fit with mating connectors prior to procurement.

Headers, Male Pins Part Context

This component belongs to the SLV series of precision-engineered electronic connectors. Fischer Elektronik specializes in Fassungen, Stecker, and Steckverbinder for printed circuit boards and ribbon cables. The SLV series offers various contact counts and pitch options for diverse industrial applications.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Users should consult official distributor catalogs or manufacturer cross-reference guides for compatible alternatives. Ensure any replacement matches the 1.27 mm pitch and 9-position requirement.
