SLV W 2 130 24 Z

Headers, Male Pins Overview

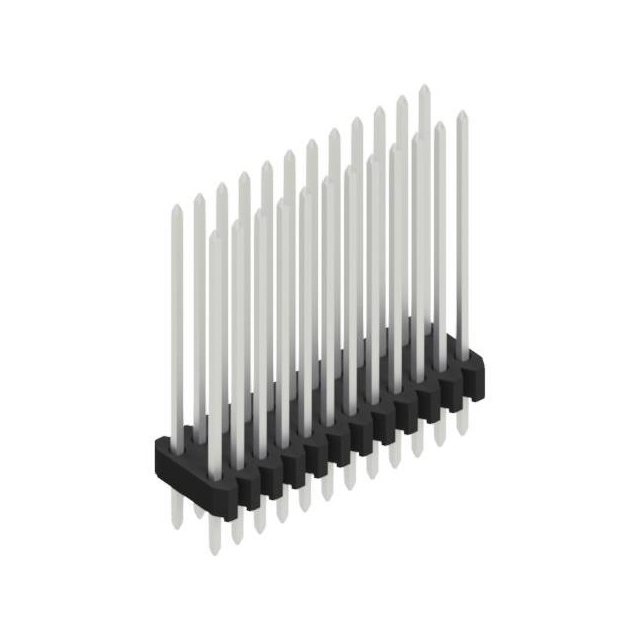

The SLV W 2 130 24 Z is a male pin header manufactured by Fischer Elektronik, designed for through-hole PCB mounting. It features a dual-row configuration with 24 total contacts arranged in a 2x12 layout. The connector utilizes a standard 1.27 mm (0.050 inch) contact pitch to ensure precise alignment with mating female headers. Constructed with copper-zinc alloy pins that are tin-plated, the component provides reliable electrical conductivity and corrosion resistance. It is rated for a maximum current of 1.5 A and supports voltages up to 125 V AC or 300 V DC. The housing is made from PA 6.6 material, offering mechanical stability and thermal resilience suitable for industrial electronic assemblies.

Headers, Male Pins Feature Summary

• Dual-row male pin header design for board-to-board or wire-to-board interconnections
• Tin-plated copper-zinc alloy contacts ensuring low resistance and durability
• Through-hole mounting style for secure PCB attachment
• PA 6.6 insulating housing providing structural integrity

Headers, Male Pins Applications

• Industrial control system signal routing
• Consumer electronics internal connectivity
• Communication equipment interface modules
• Automotive electronic sub-assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number SLV W 2 130 24 Z against official Fischer Elektronik documentation to confirm the dual-row 24-position configuration. Ensure compatibility with mating female headers such as the BLM series. Check for any ordering suffixes that may indicate variations in housing color or locking mechanisms. Confirm that the through-hole footprint matches your PCB design requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a compact dual-row connection is required for signals within the 1.5 A current rating. The 1.27 mm pitch allows for high-density layouts compared to larger pitch connectors. Consider the straight through-hole form factor for standard vertical mounting orientations. Evaluate the PA 6.6 housing material if environmental resistance is needed for general industrial use rather than extreme conditions.

Headers, Male Pins Part Context

This part belongs to the SLV W series of male headers from Fischer Elektronik, which are engineered for precision electronic applications. The series is characterized by its standardized 1.27 mm pitch and robust construction using tin-plated contacts. These headers are typically paired with corresponding female connectors to create reliable interconnect solutions in various electronic devices.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik male headers with identical 1.27 mm pitch, 24 positions, and dual-row configuration. Verify that alternative parts maintain the same 1.5 A current rating and PA 6.6 housing material. Ensure the replacement part supports through-hole mounting and matches the physical dimensions of the original component.
